5IZQ | pdb_00005izq

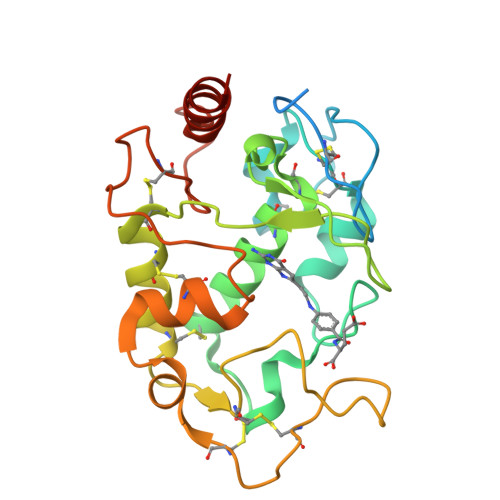

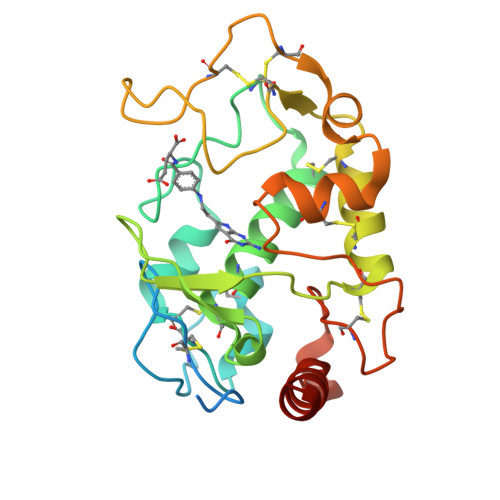

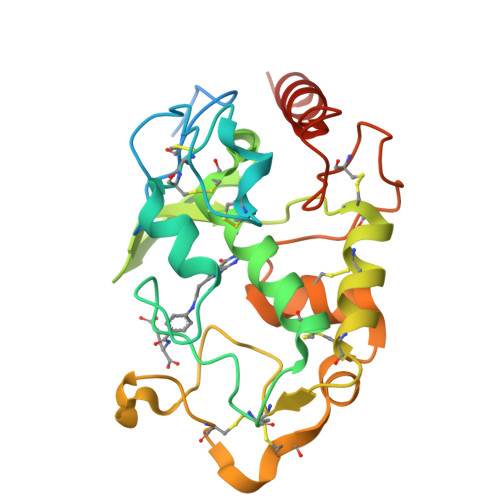

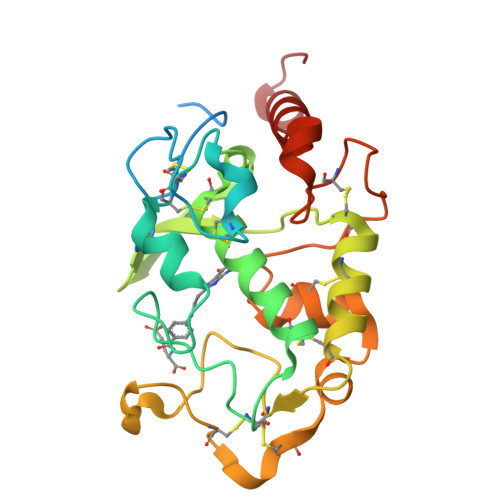

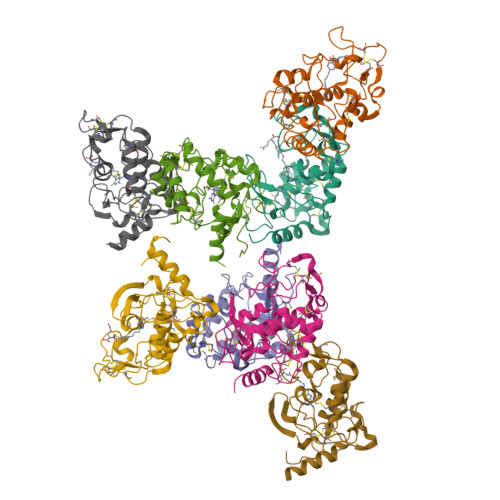

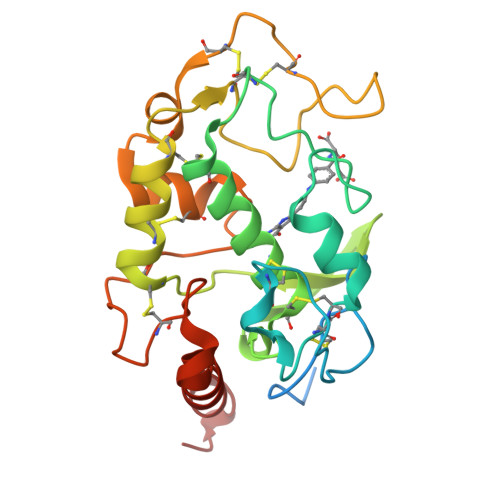

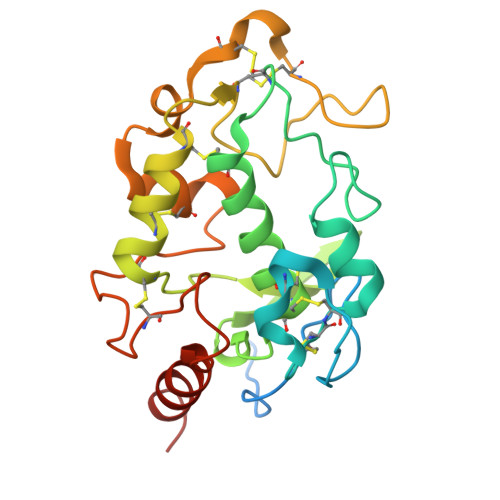

Crystal structure of human folate receptor alpha in complex with novel antifolate AGF183

  • Classification: SIGNALING PROTEIN
  • Organism(s): Homo sapiens
  • Expression System: Homo sapiens
  • Mutation(s): No

  • Deposited: 2016-03-25 Released: 2016-08-10
  • Deposition Author(s): Ke, J., Gu, X., Brunzelle, J.S., Xu, H.E., Melcher, K.
  • Funding Organization(s): National Institutes of Health/National Institute of Diabetes and Digestive and Kidney Disease (NIH/NIDDK), National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 3.60 Å
  • R-Value Free:
    0.257 (Depositor), 0.260 (DCC)
  • R-Value Work:
    0.216 (Depositor), 0.220 (DCC)
  • R-Value Observed:
    0.218 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted 83AClick on this verticalbar to view details

This is version 1.6 of the entry. See complete history


Literature

Tumor Targeting with Novel 6-Substituted Pyrrolo [2,3-d] Pyrimidine Antifolates with Heteroatom Bridge Substitutions via Cellular Uptake by Folate Receptor alpha and the Proton-Coupled Folate Transporter and Inhibition of de Novo Purine Nucleotide Biosynthesis.

Golani, L.K.Wallace-Povirk, A.Deis, S.M.Wong, J.Ke, J.Gu, X.Raghavan, S.Wilson, M.R.Li, X.Polin, L.de Waal, P.W.White, K.Kushner, J.O'Connor, C.Hou, Z.Xu, H.E.Melcher, K.Dann, C.E.Matherly, L.H.Gangjee, A.

(2016) J Med Chem 59: 7856-7876

  • DOI: https://doi.org/10.1021/acs.jmedchem.6b00594
  • Primary Citation of Related Structures:
    5IZQ, 5J9F

  • PubMed Abstract:

    Targeted antifolates with heteroatom replacements of the carbon vicinal to the phenyl ring in 1 by N (4), O (8), or S (9), or with N-substituted formyl (5), acetyl (6), or trifluoroacetyl (7) moieties, were synthesized and tested for selective cellular uptake by folate receptor (FR) α and β or the proton-coupled folate transporter. Results show increased in vitro antiproliferative activity toward engineered Chinese hamster ovary cells expressing FRs by 4-9 over the CH2 analogue 1. Compounds 4-9 inhibited de novo purine biosynthesis and glycinamide ribonucleotide formyltransferase (GARFTase). X-ray crystal structures for 4 with FRα and GARFTase showed that the bound conformations of 4 required flexibility for attachment to both FRα and GARFTase. In mice bearing IGROV1 ovarian tumor xenografts, 4 was highly efficacious. Our results establish that heteroatom substitutions in the 3-atom bridge region of 6-substituted pyrrolo[2,3-d]pyrimidines related to 1 provide targeted antifolates that warrant further evaluation as anticancer agents.


  • Organizational Affiliation

    Division of Medicinal Chemistry, Graduate School of Pharmaceutical Sciences, Duquesne University , 600 Forbes Avenue, Pittsburgh, Pennsylvania 15282, United States.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Folate receptor alpha
A, B, C, D, E
238Homo sapiensMutation(s): 0
Gene Names: FOLR1FOLR
UniProt & NIH Common Fund Data Resources
Find proteins for P15328 (Homo sapiens)
Explore P15328
Go to UniProtKB:  P15328
PHAROS:  P15328
GTEx:  ENSG00000110195
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP15328
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Binding Affinity Annotations
IDSourceBinding Affinity
83A BindingDB:  5IZQ IC50: 3 (nM) from 1 assay(s)
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 3.60 Å
  • R-Value Free:  0.257 (Depositor), 0.260 (DCC)
  • R-Value Work:  0.216 (Depositor), 0.220 (DCC)
  • R-Value Observed: 0.218 (Depositor)
Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 90.793α = 90
b = 144.982β = 90
c = 211.252γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata reduction
Aimlessdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted 83AClick on this verticalbar to view details

Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute of Diabetes and Digestive and Kidney Disease (NIH/NIDDK)United StatesDK071662
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesGM102545
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesGM104212

Revision History  (Full details and data files)

  • Version 1.0: 2016-08-10
    Type: Initial release
  • Version 1.1: 2016-09-21
    Changes: Database references
  • Version 1.2: 2017-09-20
    Changes: Author supporting evidence, Database references, Derived calculations
  • Version 1.3: 2017-11-01
    Changes: Author supporting evidence
  • Version 1.4: 2019-12-25
    Changes: Author supporting evidence
  • Version 1.5: 2023-09-27
    Changes: Data collection, Database references, Refinement description
  • Version 1.6: 2024-10-16
    Changes: Structure summary
