29SY | pdb_000029sy

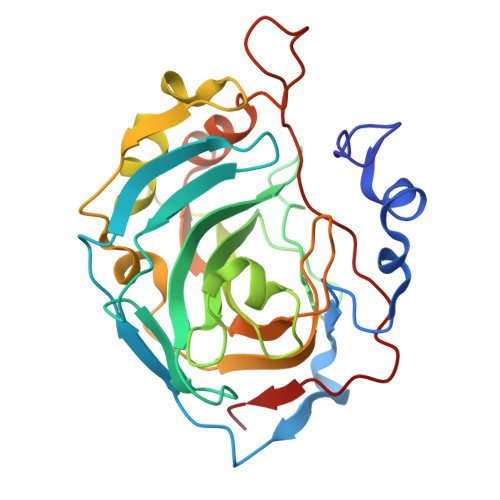

Crystal structure of carbonic anhydrase XIII with 2-(benzylthio)phenyl sulfamate

PDB DOI: https://doi.org/10.2210/pdb29SY/pdb

Classification: LYASE
Organism(s): Homo sapiens
Expression System: Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2026-04-07 Released: 2026-10-21
Deposition Author(s): Paketuryte-Latve, V., Smirnov, A., Manakova, E.N., Grazulis, S.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.40 Å
R-Value Free:
0.207 (Depositor), 0.213 (DCC)
R-Value Work:
0.152 (Depositor), 0.167 (DCC)
R-Value Observed:
0.158 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Structure-Affinity and Selectivity of Aryl-Sulfamates as Inhibitors of Carbonic Anhydrase IX

Stancaitis, L., Liberis, M., Baranauskiene, L., Paketuryte-Latve, V., Kvietkauskaite, A., Petrauskas, V., Manakova, E., Smirnov, A., Mickeviciute, A., Juozapaitiene, V., Gedgaudas, M., Kojis, T., Matuliene, J., Grazulis, S., Capkauskaite, E., Matulis, D.

(2026) J Med Chem 69: 22993-23008

DOI: https://doi.org/10.1021/acs.jmedchem.6c02393

Macromolecule Content

Total Structure Weight: 30.01 kDa
Atom Count: 2,347
Modeled Residue Count: 261
Deposited Residue Count: 262
Unique protein chains: 1

Macromolecules

Find similar proteins by:

| 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Carbonic anhydrase 13	A	262	Homo sapiens	Mutation(s): 0 Gene Names: CA13 EC: 4.2.1.1
UniProt & NIH Common Fund Data Resources
Find proteins for Q8N1Q1 (Homo sapiens) Explore Q8N1Q1 Go to UniProtKB: Q8N1Q1
PHAROS: Q8N1Q1 GTEx: ENSG00000185015
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q8N1Q1
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 4 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
A1J4J Query on A1J4J Download:Ideal Coordinates CCD File SDF format, chain G [auth A] MOL2 format, chain G [auth A] mmCIF format, chain G [auth A]	G [auth A]	[2-(phenylmethylsulfanyl)phenyl] sulfamate C₁₃ H₁₃ N O₃ S₂ AZOOLOLLTPNZMO-UHFFFAOYSA-N		Interactions Focus chain G [auth A] Interactions & Density Focus chain G [auth A]
ZN Query on ZN Download:Ideal Coordinates CCD File SDF format, chain B [auth A] MOL2 format, chain B [auth A] mmCIF format, chain B [auth A]	B [auth A]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N		Interactions Focus chain B [auth A] Interactions & Density Focus chain B [auth A]
EDO Query on EDO Download:Ideal Coordinates CCD File SDF format, chain D [auth A] SDF format, chain C [auth A] MOL2 format, chain D [auth A] MOL2 format, chain C [auth A] mmCIF format, chain D [auth A] mmCIF format, chain C [auth A]	C [auth A], D [auth A]	1,2-ETHANEDIOL C₂ H₆ O₂ LYCAIKOWRPUZTN-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Focus chain D [auth A] Interactions & Density Focus chain C [auth A] Focus chain D [auth A]
NA Query on NA Download:Ideal Coordinates CCD File SDF format, chain E [auth A] SDF format, chain F [auth A] MOL2 format, chain E [auth A] MOL2 format, chain F [auth A] mmCIF format, chain E [auth A] mmCIF format, chain F [auth A]	E [auth A], F [auth A]	SODIUM ION Na FKNQFGJONOIPTF-UHFFFAOYSA-N		Interactions Focus chain E [auth A] Focus chain F [auth A] Interactions & Density Focus chain E [auth A] Focus chain F [auth A]
