4C4P

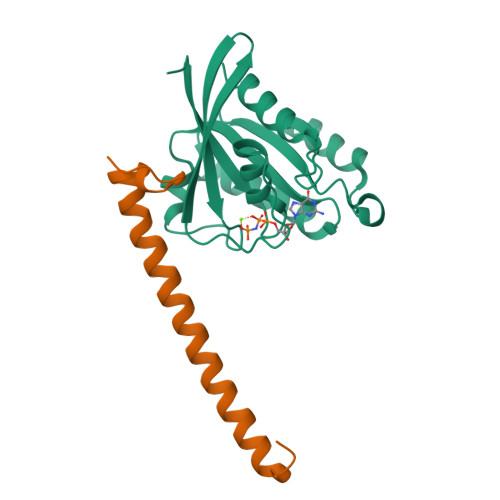

Crystal Structure of Wild-Type Rab11 Complexed to FIP2


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.00 Å
  • R-Value Free: 0.223
  • R-Value Work: 0.180
  • R-Value Observed: 0.183

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.4 of the entry. See complete history


Literature

Structural and Functional Analysis of Fip2 Binding to the Endosome-Localised Rab25 Gtpase

Lall, P.Horgan, C.P.Oda, S.Franklin, E.Sultana, A.Hanscomb, S.R.Mccaffrey, M.W.Khan, A.R.

(2013) Biochim Biophys Acta 1834: 2679

  • DOI: https://doi.org/10.1016/j.bbapap.2013.09.005
  • Primary Citation of Related Structures:
    4C4P

  • PubMed Abstract:

    Rab small GTPases are the master regulators of intracellular trafficking in eukaryotes. They mediate spatial and temporal recruitment of effector proteins to distinct cellular compartments through GTP-induced changes in their conformation. Despite numerous structural studies, the molecular basis for Rab/effector specificity and subsequent biological activity remains poorly understood. Rab25, also known as Rab11c, which is epithelial-specific, has been heavily implicated in ovarian cancer development and independently appears to act as a tumour suppressor in the context of a distinct subset of carcinomas. Here, we show that Rab25 associates with FIP2 and can recruit this effector protein to endosomal membranes. We report the crystal structure of Rab25 in complex with the C-terminal region of FIP2, which consists of a central dimeric FIP2 coiled-coil that mediates a heterotetrameric Rab25-(FIP2)2-Rab25 complex. Thermodynamic analyses show that, despite a relatively conserved interface, FIP2 binds to Rab25 with an approximate 3-fold weaker affinity than to Rab11a. Reduced affinity is mainly associated with lower enthalpic gains for Rab25:FIP2 complex formation, and can be attributed to subtle differences in the conformations of switch 1 and switch 2. These cellular, structural and thermodynamic studies provide insight into the Rab11/Rab25 subfamily of small GTPases that regulate endosomal trafficking pathways in eukaryotes.


  • Organizational Affiliation

    School of Biochemistry and Immunology, Trinity College, Dublin 2, Ireland.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
RAS-RELATED PROTEIN RAB-11A173Homo sapiensMutation(s): 0
EC: 3.6.5.2
UniProt & NIH Common Fund Data Resources
Find proteins for P62491 (Homo sapiens)
Explore P62491
Go to UniProtKB:  P62491
PHAROS:  P62491
GTEx:  ENSG00000103769
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP62491
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
RAB11 FAMILY-INTERACTING PROTEIN 2107Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q7L804 (Homo sapiens)
Explore Q7L804
Go to UniProtKB:  Q7L804
PHAROS:  Q7L804
GTEx:  ENSG00000107560
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ7L804
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.00 Å
  • R-Value Free: 0.223
  • R-Value Work: 0.180
  • R-Value Observed: 0.183
  • Space Group: P 31 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 64.56α = 90
b = 64.56β = 90
c = 112.86γ = 120
Software Package:
Software NamePurpose
PHENIXrefinement

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2013-09-18
    Type: Initial release
  • Version 1.1: 2013-10-02
    Changes: Atomic model, Database references
  • Version 1.2: 2013-10-30
    Changes: Database references
  • Version 1.3: 2015-09-16
    Changes: Source and taxonomy
  • Version 1.4: 2024-05-08
    Changes: Data collection, Database references, Derived calculations, Other
