4XLQ

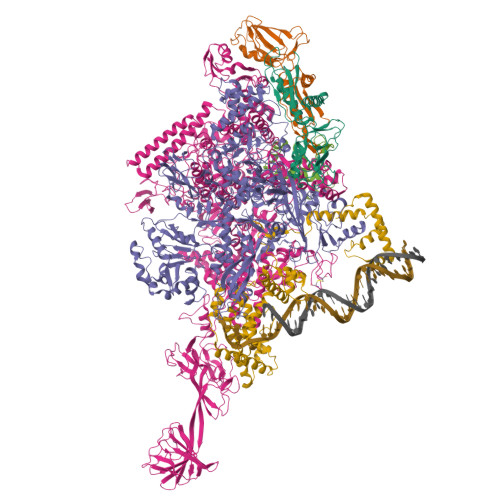

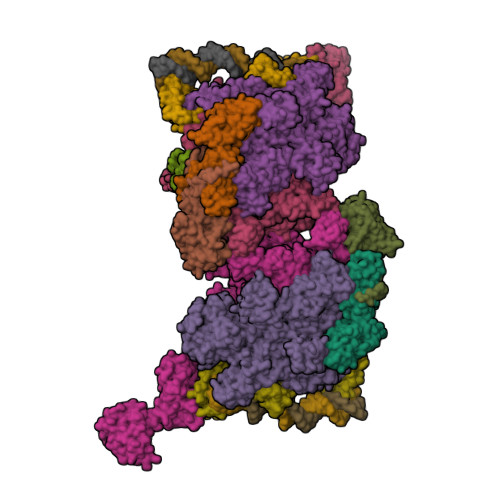

Crystal structure of T.aquaticus transcription initiation complex containing upstream fork (-11 base-paired) promoter


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 4.60 Å
  • R-Value Free: 0.281
  • R-Value Work: 0.245
  • R-Value Observed: 0.247

wwPDB Validation   3D Report Full Report


This is version 1.2 of the entry. See complete history


Literature

Structure of a bacterial RNA polymerase holoenzyme open promoter complex.

Bae, B.Feklistov, A.Lass-Napiorkowska, A.Landick, R.Darst, S.A.

(2015) Elife 4

  • DOI: https://doi.org/10.7554/eLife.08504
  • Primary Citation of Related Structures:
    4XLN, 4XLP, 4XLQ

  • PubMed Abstract:

    Initiation of transcription is a primary means for controlling gene expression. In bacteria, the RNA polymerase (RNAP) holoenzyme binds and unwinds promoter DNA, forming the transcription bubble of the open promoter complex (RPo). We have determined crystal structures, refined to 4.14 Å-resolution, of RPo containing Thermus aquaticus RNAP holoenzyme and promoter DNA that includes the full transcription bubble. The structures, combined with biochemical analyses, reveal key features supporting the formation and maintenance of the double-strand/single-strand DNA junction at the upstream edge of the -10 element where bubble formation initiates. The results also reveal RNAP interactions with duplex DNA just upstream of the -10 element and potential protein/DNA interactions that direct the DNA template strand into the RNAP active site. Addition of an RNA primer to yield a 4 base-pair post-translocated RNA:DNA hybrid mimics an initially transcribing complex at the point where steric clash initiates abortive initiation and σ(A) dissociation.


  • Organizational Affiliation

    Laboratory for Molecular Biophysics, The Rockefeller University, New York, United States.


Macromolecules

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase subunit alpha
A, B, G, H
314Thermus aquaticusMutation(s): 0
EC: 2.7.7.6
UniProt
Find proteins for Q9KWU8 (Thermus aquaticus)
Explore Q9KWU8
Go to UniProtKB:  Q9KWU8
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9KWU8
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase subunit beta
C, I
1,119Thermus aquaticusMutation(s): 0
EC: 2.7.7.6
UniProt
Find proteins for Q9KWU7 (Thermus aquaticus)
Explore Q9KWU7
Go to UniProtKB:  Q9KWU7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9KWU7
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase subunit beta'
D, J
1,524Thermus aquaticusMutation(s): 0
EC: 2.7.7.6
UniProt
Find proteins for Q9KWU6 (Thermus aquaticus)
Explore Q9KWU6
Go to UniProtKB:  Q9KWU6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9KWU6
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase subunit omega
E, K
99Thermus aquaticusMutation(s): 0
EC: 2.7.7.6
UniProt
Find proteins for Q9EVV4 (Thermus aquaticus)
Explore Q9EVV4
Go to UniProtKB:  Q9EVV4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9EVV4
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage
RNA polymerase sigma factor SigA
F, L
347Thermus aquaticusMutation(s): 0
Gene Names: sigA
UniProt
Find proteins for Q9EZJ8 (Thermus aquaticus)
Explore Q9EZJ8
Go to UniProtKB:  Q9EZJ8
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9EZJ8
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains LengthOrganismImage
DNA (30-MER)M [auth O],
O [auth R]
30synthetic construct
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains LengthOrganismImage
DNA (26-MER)N [auth P],
P [auth S]
26synthetic construct
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 4.60 Å
  • R-Value Free: 0.281
  • R-Value Work: 0.245
  • R-Value Observed: 0.247
  • Space Group: P 43 21 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 288.23α = 90
b = 288.23β = 90
c = 535.25γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
DENZOdata reduction
SCALEPACKdata scaling
PHASERphasing
PDB_EXTRACTdata extraction

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesGM053759

Revision History  (Full details and data files)

  • Version 1.0: 2015-09-23
    Type: Initial release
  • Version 1.1: 2017-09-20
    Changes: Author supporting evidence, Derived calculations, Refinement description
  • Version 1.2: 2019-12-25
    Changes: Author supporting evidence
