5LU8

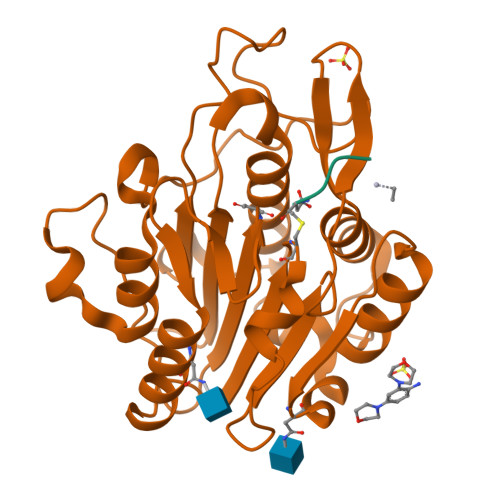

CRYSTAL STRUCTURE OF YVAD-CMK BOUND HUMAN LEGUMAIN (AEP) IN COMPLEX WITH COMPOUND 11B


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.95 Å
  • R-Value Free: 0.251
  • R-Value Work: 0.219
  • R-Value Observed: 0.220

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 2.2 of the entry. See complete history


Literature

Inhibition of delta-secretase improves cognitive functions in mouse models of Alzheimer's disease.

Zhang, Z.Obianyo, O.Dall, E.Du, Y.Fu, H.Liu, X.Kang, S.S.Song, M.Yu, S.P.Cabrele, C.Schubert, M.Li, X.Wang, J.Z.Brandstetter, H.Ye, K.

(2017) Nat Commun 8: 14740-14740

  • DOI: https://doi.org/10.1038/ncomms14740
  • Primary Citation of Related Structures:
    5LU8, 5LU9, 5LUA, 5LUB

  • PubMed Abstract:

    δ-secretase, also known as asparagine endopeptidase (AEP) or legumain, is a lysosomal cysteine protease that cleaves both amyloid precursor protein (APP) and tau, mediating the amyloid-β and tau pathology in Alzheimer's disease (AD). Here we report the therapeutic effect of an orally bioactive and brain permeable δ-secretase inhibitor in mouse models of AD. We performed a high-throughput screen and identified a non-toxic and selective δ-secretase inhibitor, termed compound 11, that specifically blocks δ-secretase but not other related cysteine proteases. Co-crystal structure analysis revealed a dual active site-directed and allosteric inhibition mode of this compound class. Chronic treatment of tau P301S and 5XFAD transgenic mice with this inhibitor reduces tau and APP cleavage, ameliorates synapse loss and augments long-term potentiation, resulting in protection of memory. Therefore, these findings demonstrate that this δ-secretase inhibitor may be an effective clinical therapeutic agent towards AD.


  • Organizational Affiliation

    Department of Pathology and Laboratory Medicine, Emory University School of Medicine, Atlanta, Georgia 30322, USA.


Macromolecules

Find similar proteins by:  Sequence   |   3D Structure

Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
AC-TYR-VAL-ALA-ASP-CHLOROMETHYLKETONEA [auth C]6synthetic constructMutation(s): 0
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
LegumainB [auth A]263Homo sapiensMutation(s): 1
Gene Names: LGMNPRSC1
EC: 3.4.22.34
UniProt & NIH Common Fund Data Resources
Find proteins for Q99538 (Homo sapiens)
Explore Q99538
Go to UniProtKB:  Q99538
PHAROS:  Q99538
GTEx:  ENSG00000100600
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ99538
Glycosylation
Glycosylation Sites: 2Go to GlyGen: Q99538-1
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 4 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
5KN
Query on 5KN

Download Ideal Coordinates CCD File
H [auth A]2,4-di(morpholin-4-yl)aniline
C14 H21 N3 O2
VEMKXLKXBFHADY-UHFFFAOYSA-N
EMC
Query on EMC

Download Ideal Coordinates CCD File
G [auth A]ETHYL MERCURY ION
C2 H5 Hg
MJOUBOKSWBMNGQ-UHFFFAOYSA-N
NAG
Query on NAG

Download Ideal Coordinates CCD File
E [auth A],
F [auth A]
2-acetamido-2-deoxy-beta-D-glucopyranose
C8 H15 N O6
OVRNDRQMDRJTHS-FMDGEEDCSA-N
SO4
Query on SO4

Download Ideal Coordinates CCD File
C [auth A],
D [auth A]
SULFATE ION
O4 S
QAOWNCQODCNURD-UHFFFAOYSA-L
Modified Residues  1 Unique
IDChains TypeFormula2D DiagramParent
SNN
Query on SNN
B [auth A]L-PEPTIDE LINKINGC4 H6 N2 O2ASN
Biologically Interesting Molecules (External Reference) 1 Unique
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.95 Å
  • R-Value Free: 0.251
  • R-Value Work: 0.219
  • R-Value Observed: 0.220
  • Space Group: P 42
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 64.32α = 90
b = 64.32β = 90
c = 78.91γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
iMOSFLMdata reduction
Aimlessdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2017-03-29
    Type: Initial release
  • Version 1.1: 2017-04-05
    Changes: Database references
  • Version 1.2: 2018-06-13
    Changes: Data collection, Structure summary
  • Version 1.3: 2020-07-29
    Type: Remediation
    Reason: Carbohydrate remediation
    Changes: Data collection, Derived calculations, Structure summary
  • Version 2.0: 2023-11-15
    Changes: Atomic model, Data collection, Database references, Derived calculations, Structure summary
  • Version 2.1: 2024-01-17
    Changes: Refinement description
  • Version 2.2: 2024-11-13
    Changes: Structure summary
