6O07

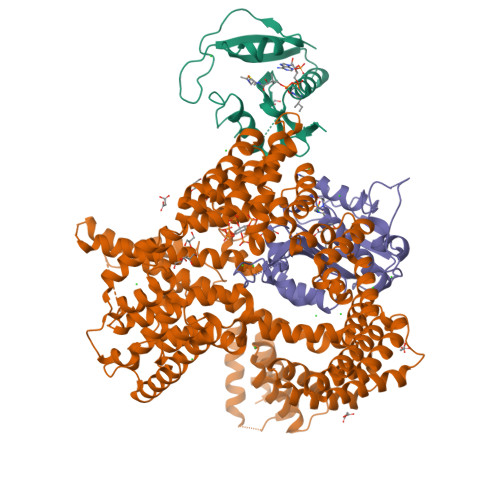

Structure and mechanism of acetylation by the N-terminal dual enzyme NatA/Naa50 complex


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.70 Å
  • R-Value Free: 0.250
  • R-Value Work: 0.222
  • R-Value Observed: 0.224

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.5 of the entry. See complete history


Literature

Structure and Mechanism of Acetylation by the N-Terminal Dual Enzyme NatA/Naa50 Complex.

Deng, S.Magin, R.S.Wei, X.Pan, B.Petersson, E.J.Marmorstein, R.

(2019) Structure 27: 1057

  • DOI: https://doi.org/10.1016/j.str.2019.04.014
  • Primary Citation of Related Structures:
    6O07

  • PubMed Abstract:

    NatA co-translationally acetylates the N termini of over 40% of eukaryotic proteins and can associate with another catalytic subunit, Naa50, to form a ternary NatA/Naa50 dual enzyme complex (also called NatE). The molecular basis of association between Naa50 and NatA and the mechanism for how their association affects their catalytic activities in yeast and human are poorly understood. Here, we determined the X-ray crystal structure of yeast NatA/Naa50 as a scaffold to understand coregulation of NatA/Naa50 activity in both yeast and human. We find that Naa50 makes evolutionarily conserved contacts to both the Naa10 and Naa15 subunits of NatA. These interactions promote catalytic crosstalk within the human complex, but do so to a lesser extent in the yeast complex, where Naa50 activity is compromised. These studies have implications for understanding the role of the NatA/Naa50 complex in modulating the majority of the N-terminal acetylome in diverse species.


  • Organizational Affiliation

    Department of Chemistry, University of Pennsylvania, 231 South 34(th) Street, Philadelphia, PA 19104, USA; Abramson Family Cancer Research Institute, Perelman School of Medicine, University of Pennsylvania, Philadelphia, PA 19104, USA.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
N-terminal acetyltransferase A complex subunit NAT5A [auth C]176Saccharomyces cerevisiaeMutation(s): 0
EC: 2.3.1.258
UniProt
Find proteins for Q08689 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore Q08689
Go to UniProtKB:  Q08689
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ08689
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Naa15B [auth A]854Saccharomyces cerevisiaeMutation(s): 0
UniProt
Find proteins for P12945 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P12945
Go to UniProtKB:  P12945
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP12945
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
N-terminal acetyltransferase A complex catalytic subunit ARD1C [auth B]238Saccharomyces cerevisiaeMutation(s): 0
EC: 2.3.1.255
UniProt
Find proteins for P07347 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P07347
Go to UniProtKB:  P07347
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP07347
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 6 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
ACO
Query on ACO

Download Ideal Coordinates CCD File
F [auth C]ACETYL COENZYME *A
C23 H38 N7 O17 P3 S
ZSLZBFCDCINBPY-ZSJPKINUSA-N
IHP
Query on IHP

Download Ideal Coordinates CCD File
Z [auth A]INOSITOL HEXAKISPHOSPHATE
C6 H18 O24 P6
IMQLKJBTEOYOSI-GPIVLXJGSA-N
EPE
Query on EPE

Download Ideal Coordinates CCD File
JA [auth B]4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID
C8 H18 N2 O4 S
JKMHFZQWWAIEOD-UHFFFAOYSA-N
MLI
Query on MLI

Download Ideal Coordinates CCD File
IA [auth B],
W [auth A],
X [auth A],
Y [auth A]
MALONATE ION
C3 H2 O4
OFOBLEOULBTSOW-UHFFFAOYSA-L
GOL
Query on GOL

Download Ideal Coordinates CCD File
E [auth C]
GA [auth B]
HA [auth B]
R [auth A]
S [auth A]
E [auth C],
GA [auth B],
HA [auth B],
R [auth A],
S [auth A],
T [auth A],
U [auth A],
V [auth A]
GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N
CL
Query on CL

Download Ideal Coordinates CCD File
AA [auth B]
BA [auth B]
CA [auth B]
D [auth C]
DA [auth B]
AA [auth B],
BA [auth B],
CA [auth B],
D [auth C],
DA [auth B],
EA [auth B],
FA [auth B],
G [auth A],
H [auth A],
I [auth A],
J [auth A],
K [auth A],
L [auth A],
M [auth A],
N [auth A],
O [auth A],
P [auth A],
Q [auth A]
CHLORIDE ION
Cl
VEXZGXHMUGYJMC-UHFFFAOYSA-M
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.70 Å
  • R-Value Free: 0.250
  • R-Value Work: 0.222
  • R-Value Observed: 0.224
  • Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 84.437α = 90
b = 125.726β = 90
c = 145.924γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
HKL-2000data reduction
HKL-2000data scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesR35 GM118090

Revision History  (Full details and data files)

  • Version 1.0: 2019-06-12
    Type: Initial release
  • Version 1.1: 2019-06-19
    Changes: Data collection, Database references
  • Version 1.2: 2019-07-17
    Changes: Data collection, Database references
  • Version 1.3: 2020-01-01
    Changes: Author supporting evidence
  • Version 1.4: 2020-10-14
    Changes: Structure summary
  • Version 1.5: 2023-10-11
    Changes: Data collection, Database references, Refinement description
