7K4T

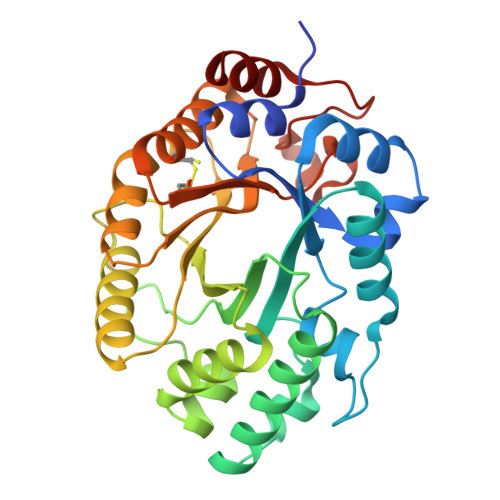

Crystal structure of Kemp Eliminase HG3.17


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.00 Å
  • R-Value Free: 0.181
  • R-Value Work: 0.159
  • R-Value Observed: 0.159

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.3 of the entry. See complete history


Literature

How directed evolution reshapes the energy landscape in an enzyme to boost catalysis.

Otten, R.Padua, R.A.P.Bunzel, H.A.Nguyen, V.Pitsawong, W.Patterson, M.Sui, S.Perry, S.L.Cohen, A.E.Hilvert, D.Kern, D.

(2020) Science 370: 1442-1446

  • DOI: https://doi.org/10.1126/science.abd3623
  • Primary Citation of Related Structures:
    7K4P, 7K4Q, 7K4R, 7K4S, 7K4T, 7K4U, 7K4V, 7K4W, 7K4X, 7K4Y, 7K4Z

  • PubMed Abstract:

    The advent of biocatalysts designed computationally and optimized by laboratory evolution provides an opportunity to explore molecular strategies for augmenting catalytic function. Applying a suite of nuclear magnetic resonance, crystallography, and stopped-flow techniques to an enzyme designed for an elementary proton transfer reaction, we show how directed evolution gradually altered the conformational ensemble of the protein scaffold to populate a narrow, highly active conformational ensemble and accelerate this transformation by nearly nine orders of magnitude. Mutations acquired during optimization enabled global conformational changes, including high-energy backbone rearrangements, that cooperatively organized the catalytic base and oxyanion stabilizer, thus perfecting transition-state stabilization. The development of protein catalysts for many chemical transformations could be facilitated by explicitly sampling conformational substates during design and specifically stabilizing productive substates over all unproductive conformations.


  • Organizational Affiliation

    Howard Hughes Medical Institute and Department of Biochemistry, Brandeis University, Waltham, MA 02454, USA.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Endo-1,4-beta-xylanase308Thermoascus aurantiacusMutation(s): 0
Gene Names: XYNA
EC: 3.2.1.8
UniProt
Find proteins for P23360 (Thermoascus aurantiacus)
Explore P23360
Go to UniProtKB:  P23360
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP23360
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.00 Å
  • R-Value Free: 0.181
  • R-Value Work: 0.159
  • R-Value Observed: 0.159
  • Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 50.15α = 90
b = 66.82β = 90
c = 71.98γ = 90
Software Package:
Software NamePurpose
Cootmodel building
PHENIXrefinement
iMOSFLMdata reduction
Aimlessdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Department of Energy (DOE, United States)United StatesDE-FG02-05ER15699
Damon Runyon Cancer Research FoundationUnited StatesDRG-2114-12
Department of Energy (DOE, United States)United StatesDE-AC02-76SF00515
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesP41GM103393
Howard Hughes Medical Institute (HHMI)United States--
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesP30 GM124169
Department of Energy (DOE, United States)United StatesDE-AC02-05CH11231
National Institutes of Health/Office of the DirectorUnited StatesS10OD021832
Swiss National Science FoundationSwitzerland--
Other governmentSwitzerland--
National Science Foundation (NSF, United States)United StatesBioXFEL STC (1231306)

Revision History  (Full details and data files)

  • Version 1.0: 2020-12-02
    Type: Initial release
  • Version 1.1: 2020-12-30
    Changes: Database references
  • Version 1.2: 2023-10-18
    Changes: Data collection, Database references, Refinement description
  • Version 1.3: 2024-11-13
    Changes: Structure summary
