9BG8 | pdb_00009bg8

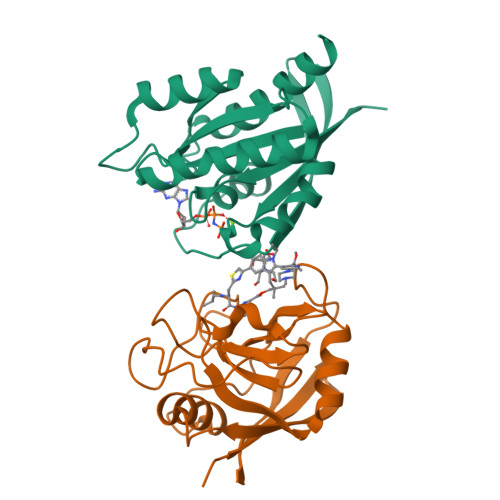

Tri-complex of Daraxonrasib (RMC-6236), NRAS Q61R, and CypA


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.20 Å
  • R-Value Free:
    0.186 (Depositor), 0.191 (DCC)
  • R-Value Work:
    0.152 (Depositor), 0.166 (DCC)
  • R-Value Observed:
    0.154 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted A1AHBClick on this verticalbar to view details

This is version 1.0 of the entry. See complete history


Literature

Discovery of Daraxonrasib (RMC-6236), a Potent and Orally Bioavailable RAS(ON) Multi-selective, Noncovalent Tri-complex Inhibitor for the Treatment of Patients with Multiple RAS-Addicted Cancers.

Cregg, J.Edwards, A.V.Chang, S.Lee, B.J.Knox, J.E.Tomlinson, A.C.A.Marquez, A.Liu, Y.Freilich, R.Aay, N.Wang, Y.Jiang, L.Jiang, J.Wang, Z.Flagella, M.Wildes, D.Smith, J.A.M.Singh, M.Wang, Z.Gill, A.L.Koltun, E.S.

(2025) J Med Chem

  • DOI: https://doi.org/10.1021/acs.jmedchem.4c02314
  • Primary Citation of Related Structures:
    9BG0, 9BG1, 9BG2, 9BG3, 9BG4, 9BG5, 9BG6, 9BG7, 9BG8, 9BG9, 9BGA, 9BGB, 9BGC, 9BGD

  • PubMed Abstract:

    Oncogenic RAS mutations are among the most common in human cancers. To target the active, GTP-bound state of RAS(ON) directly, we employed an innovative tri-complex inhibitor (TCI) modality. Formation of a complex with an intracellular chaperone protein CypA, an inhibitor, and a target protein RAS blocks effector binding, inhibiting downstream RAS signaling and tumor cell proliferation. Herein, we describe the structure-guided SAR journey that led to the discovery of daraxonrasib (RMC-6236), a noncovalent, potent tri-complex inhibitor of multiple RAS mutant and wild-type (WT) variants. This orally bioavailable bRo5 macrocyclic molecule occupies a unique composite binding pocket comprising CypA and SWI/SWII regions of RAS(ON). To achieve broad-spectrum RAS isoform activity, we deployed an SAR campaign that focused on interactions with residues conserved between mutants and WT RAS isoforms. Concurrent optimization of potency and drug-like properties led to the discovery of daraxonrasib (RMC-6236), currently in clinical evaluation in RAS mutant advanced solid tumors (NCT05379985; NCT06040541; NCT06162221; NCT06445062; NCT06128551).


  • Organizational Affiliation

    Revolution Medicines, Inc., Redwood City, California 94063, United States.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
GTPase NRas
A, B
170Homo sapiensMutation(s): 1
Gene Names: NRASHRAS1
EC: 3.6.5.2
UniProt & NIH Common Fund Data Resources
Find proteins for P01111 (Homo sapiens)
Explore P01111
Go to UniProtKB:  P01111
PHAROS:  P01111
GTEx:  ENSG00000213281
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP01111
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Peptidyl-prolyl cis-trans isomerase A
C, D
166Homo sapiensMutation(s): 0
Gene Names: PPIACYPA
EC: 5.2.1.8
UniProt & NIH Common Fund Data Resources
Find proteins for P62937 (Homo sapiens)
Explore P62937
Go to UniProtKB:  P62937
PHAROS:  P62937
GTEx:  ENSG00000196262
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP62937
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 4 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
A1AHB (Subject of Investigation/LOI)
Query on A1AHB

Download Ideal Coordinates CCD File
K [auth C],
L [auth D]
(1R,2S)-N-[(1P,7S,9S,13R,20M)-21-ethyl-20-{2-[(1R)-1-methoxyethyl]-5-(4-methylpiperazin-1-yl)pyridin-3-yl}-17,17-dimethyl-8,14-dioxo-15-oxa-4-thia-9,21,27,28-tetraazapentacyclo[17.5.2.1~2,5~.1~9,13~.0~22,26~]octacosa-1(24),2,5(28),19,22,25-hexaen-7-yl]-2-methylcyclopropane-1-carboxamide
C44 H58 N8 O5 S
FVICRBSEYSHKFY-MYQJQZSQSA-N
GNP
Query on GNP

Download Ideal Coordinates CCD File
E [auth A],
H [auth B]
PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER
C10 H17 N6 O13 P3
UQABYHGXWYXDTK-UUOKFMHZSA-N
BTB
Query on BTB

Download Ideal Coordinates CCD File
G [auth A],
J [auth B]
2-[BIS-(2-HYDROXY-ETHYL)-AMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL
C8 H19 N O5
OWMVSZAMULFTJU-UHFFFAOYSA-N
MG
Query on MG

Download Ideal Coordinates CCD File
F [auth A],
I [auth B]
MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.20 Å
  • R-Value Free:  0.186 (Depositor), 0.191 (DCC)
  • R-Value Work:  0.152 (Depositor), 0.166 (DCC)
  • R-Value Observed: 0.154 (Depositor)
Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 66.01α = 90
b = 84.1β = 90
c = 127.42γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
PHENIXrefinement
HKL-2000data reduction
HKL-2000data scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted A1AHBClick on this verticalbar to view details

Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Not funded--

Revision History  (Full details and data files)

  • Version 1.0: 2025-03-19
    Type: Initial release
