9MU7 | pdb_00009mu7

Structure of a native Drosophila melanogaster Pol II Elongation Complex with a well-defined Rpb4/Rpb7 stalk

PDB DOI: https://doi.org/10.2210/pdb9MU7/pdb
EM Map EMD-48622: EMDB EMDataResource

Classification: TRANSCRIPTION
Organism(s): Drosophila melanogaster
Mutation(s): No

Deposited: 2025-01-13 Released: 2026-01-07
Deposition Author(s): Venette-Smith, N.L., Vishwakarma, R.K., Dollinger, R., Schultz, J., Venkatakrishnan, V., Babitzke, P., Anand, G., Gilmour, D.S., Armache, J.-P., Murakami, K.
Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.44 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

Starting Models: in silico
View more details

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Structural Characterization of Native RNA Polymerase II Transcription Complexes in Drosophila melanogaster

Venette-Smith, N.L., Vishwakarma, R.K., Dollinger, R., Schultz, J., Venkatakrishnan, V., Babitzke, P., Anand, G., Gilmour, D.S., Armache, J.-P., Murakami, K.

To be published.

Macromolecule Content

Total Structure Weight: 486.71 kDa
Atom Count: 33,887
Modeled Residue Count: 4,091
Deposited Residue Count: 4,091
Unique protein chains: 12
Unique nucleic acid chains: 3

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

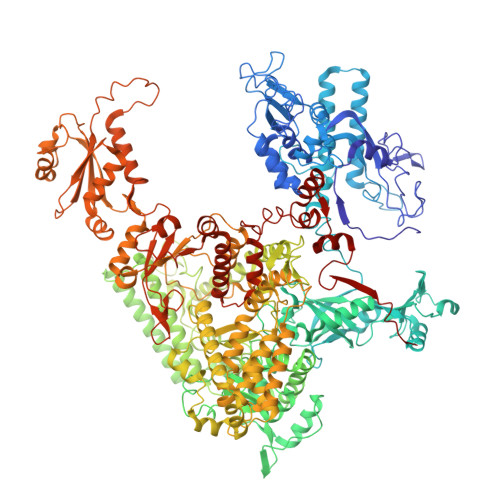

DNA-directed RNA polymerase II subunit RPB1	A	1,470	Drosophila melanogaster	Mutation(s): 0 EC: 2.7.7.6
UniProt
Find proteins for P04052 (Drosophila melanogaster) Explore P04052 Go to UniProtKB: P04052
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P04052
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

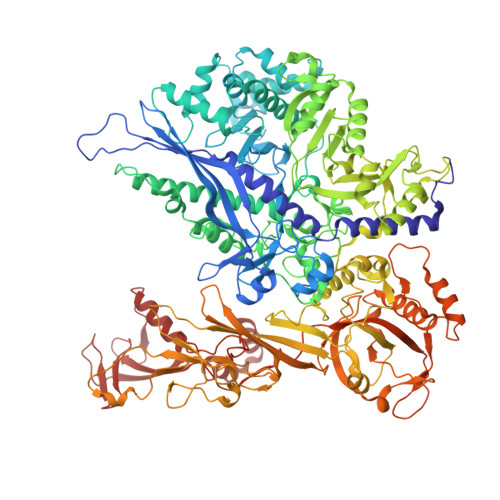

DNA-directed RNA polymerase II subunit RPB2	B	1,164	Drosophila melanogaster	Mutation(s): 0 EC: 2.7.7.6
UniProt
Find proteins for P08266 (Drosophila melanogaster) Explore P08266 Go to UniProtKB: P08266
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P08266
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

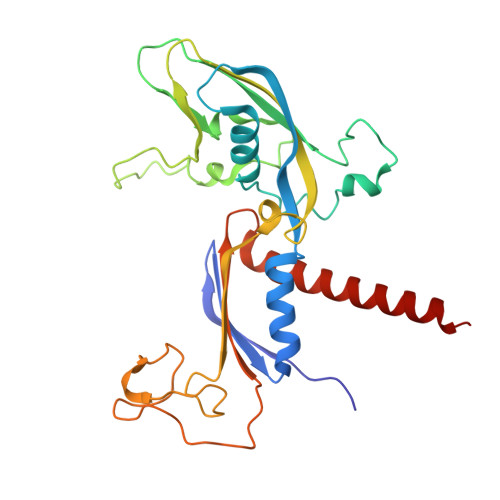

DNA-directed RNA polymerase II subunit RPB3	C	269	Drosophila melanogaster	Mutation(s): 0 EC: 2.7.7.6
UniProt
Find proteins for O97183 (Drosophila melanogaster) Explore O97183 Go to UniProtKB: O97183
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	O97183
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

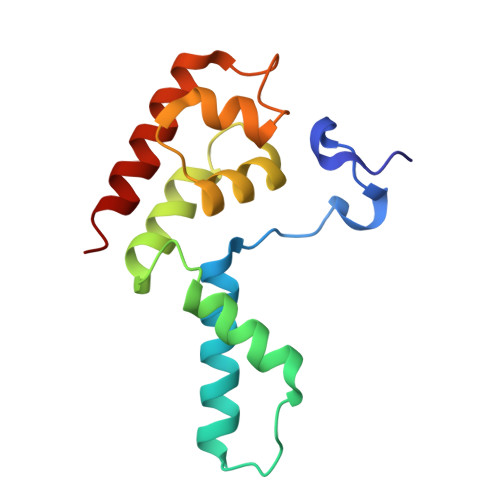

DNA-directed RNA polymerase II subunit Rpb4	D	130	Drosophila melanogaster	Mutation(s): 0
UniProt
Find proteins for Q9VEA5 (Drosophila melanogaster) Explore Q9VEA5 Go to UniProtKB: Q9VEA5
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q9VEA5
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 5
Molecule	Chains	Sequence Length	Organism	Details	Image

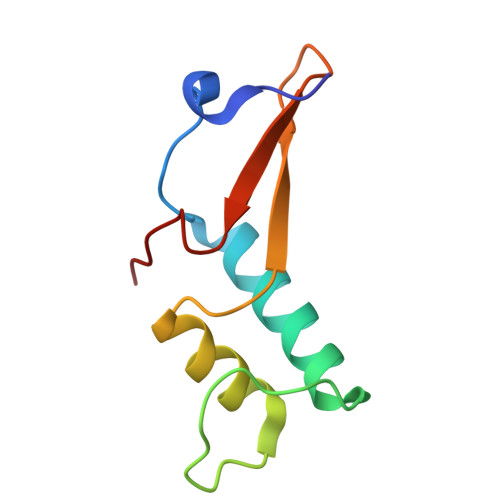

DNA-directed RNA polymerases I, II, and III subunit RPABC2	E [auth F]	84	Drosophila melanogaster	Mutation(s): 0
UniProt
Find proteins for Q24320 (Drosophila melanogaster) Explore Q24320 Go to UniProtKB: Q24320
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q24320
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

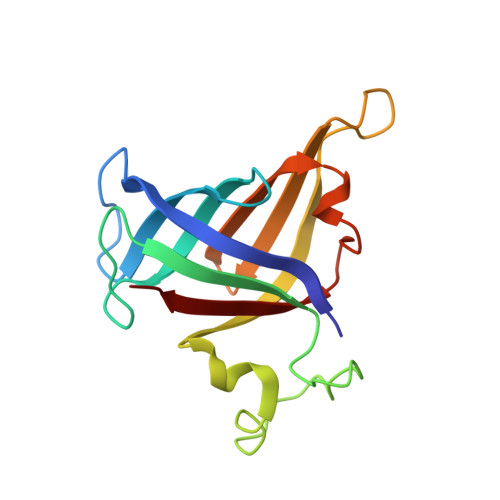

Entity ID: 6
Molecule	Chains	Sequence Length	Organism	Details	Image
DNA-directed RNA polymerase II subunit RPB7	F [auth G]	173	Drosophila melanogaster	Mutation(s): 0
UniProt
Find proteins for Q9VFB5 (Drosophila melanogaster) Explore Q9VFB5 Go to UniProtKB: Q9VFB5
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q9VFB5
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 7
Molecule	Chains	Sequence Length	Organism	Details	Image
DNA-directed RNA polymerases I, II, and III subunit RPABC3	G [auth H]	147	Drosophila melanogaster	Mutation(s): 0
UniProt
Find proteins for Q9VNZ3 (Drosophila melanogaster) Explore Q9VNZ3 Go to UniProtKB: Q9VNZ3
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q9VNZ3
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 8
Molecule	Chains	Sequence Length	Organism	Details	Image
DNA-directed RNA polymerase II subunit RPB9	H [auth I]	116	Drosophila melanogaster	Mutation(s): 0
UniProt
Find proteins for P36958 (Drosophila melanogaster) Explore P36958 Go to UniProtKB: P36958
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P36958
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 9
Molecule	Chains	Sequence Length	Organism	Details	Image

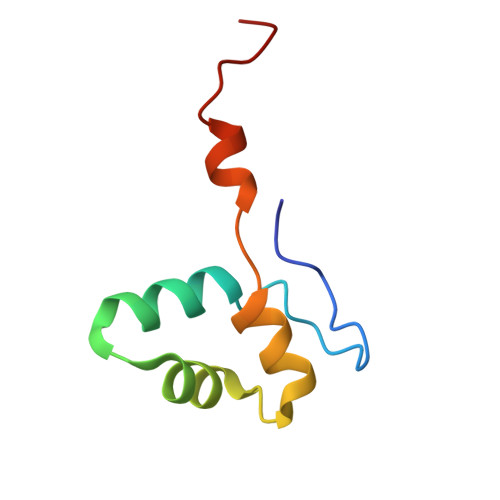

DNA-directed RNA polymerases I, II, and III subunit RPABC5	I [auth J]	67	Drosophila melanogaster	Mutation(s): 0
UniProt
Find proteins for Q9VC49 (Drosophila melanogaster) Explore Q9VC49 Go to UniProtKB: Q9VC49
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q9VC49
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 10
Molecule	Chains	Sequence Length	Organism	Details	Image
DNA-directed RNA polymerase II subunit RPB11	J [auth K]	116	Drosophila melanogaster	Mutation(s): 0
UniProt
Find proteins for Q9VJE4 (Drosophila melanogaster) Explore Q9VJE4 Go to UniProtKB: Q9VJE4
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q9VJE4
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 11
Molecule	Chains	Sequence Length	Organism	Details	Image
DNA-directed RNA polymerase II subunit RPB12	K [auth L]	46	Drosophila melanogaster	Mutation(s): 0
UniProt
Find proteins for Q6IGE3 (Drosophila melanogaster) Explore Q6IGE3 Go to UniProtKB: Q6IGE3
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q6IGE3
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

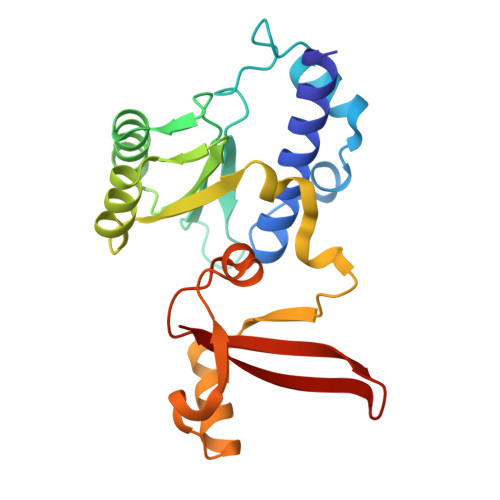

Entity ID: 15
Molecule	Chains	Sequence Length	Organism	Details	Image
DNA-directed RNA polymerase II subunit RPB5	O [auth E]	210	Drosophila melanogaster	Mutation(s): 0
UniProt
Find proteins for Q7JZF5 (Drosophila melanogaster) Explore Q7JZF5 Go to UniProtKB: Q7JZF5
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q7JZF5
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by: Sequence | 3D Structure

Entity ID: 12
Molecule	Chains	Length	Organism	Image

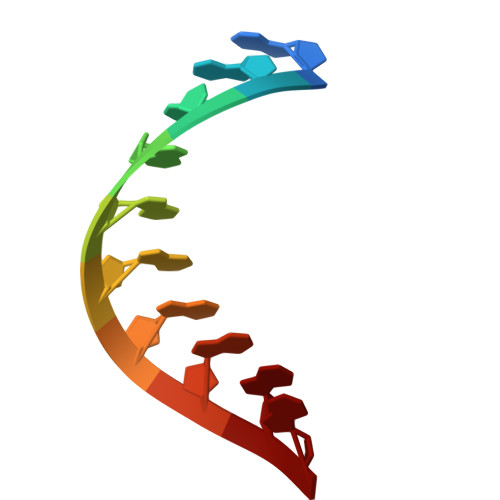

RNA	L [auth R]	10	Drosophila melanogaster
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by:

(by identity cutoff) | 3D Structure

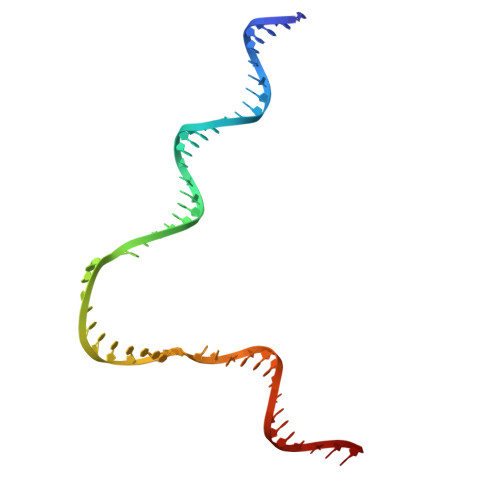

Entity ID: 13
Molecule	Chains	Length	Organism	Image
Template DNA	M [auth T]	50	Drosophila melanogaster
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by:

(by identity cutoff) | 3D Structure

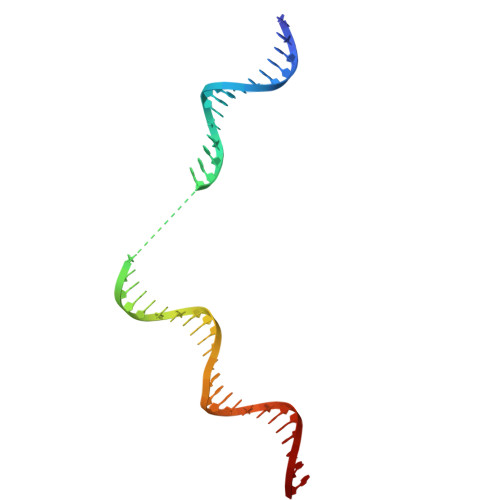

Entity ID: 14
Molecule	Chains	Length	Organism	Image
Non-template DNA	N	39	Drosophila melanogaster
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ZN (Subject of Investigation/LOI) Query on ZN Download Ideal Coordinates CCD File SDF format, chain P [auth A] SDF format, chain Q [auth A] SDF format, chain S [auth C] SDF format, chain T [auth I] SDF format, chain U [auth I] SDF format, chain W [auth L] SDF format, chain V [auth J] SDF format, chain R [auth B] MOL2 format, chain P [auth A] MOL2 format, chain Q [auth A] MOL2 format, chain S [auth C] MOL2 format, chain T [auth I] MOL2 format, chain U [auth I] MOL2 format, chain W [auth L] MOL2 format, chain V [auth J] MOL2 format, chain R [auth B] mmCIF format, chain P [auth A] mmCIF format, chain Q [auth A] mmCIF format, chain S [auth C] mmCIF format, chain T [auth I] mmCIF format, chain U [auth I] mmCIF format, chain W [auth L] mmCIF format, chain V [auth J] mmCIF format, chain R [auth B]	P [auth A] Q [auth A] R [auth B] S [auth C] T [auth I] P [auth A], Q [auth A], R [auth B], S [auth C], T [auth I], U [auth I], V [auth J], W [auth L]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N		Interactions Focus chain P [auth A] Focus chain Q [auth A] Focus chain R [auth B] Focus chain S [auth C] Focus chain T [auth I] Focus chain U [auth I] Focus chain V [auth J] Focus chain W [auth L] Interactions & Density Focus chain P [auth A] Focus chain Q [auth A] Focus chain R [auth B] Focus chain S [auth C] Focus chain T [auth I] Focus chain U [auth I] Focus chain V [auth J] Focus chain W [auth L]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.44 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	Coot	0.9.8.7
MODEL REFINEMENT	PHENIX	1.21.5207
RECONSTRUCTION	cryoSPARC	4.3.1

Structure Validation

View Full Validation Report

Entry History & Funding Information

Deposition Data

Released Date: 2026-01-07

Deposition Author(s):

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	GM131860
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	GM047477
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	GM098399

Revision History (Full details and data files)

Version 1.0: 2026-01-07
Type: Initial release
