1U3R

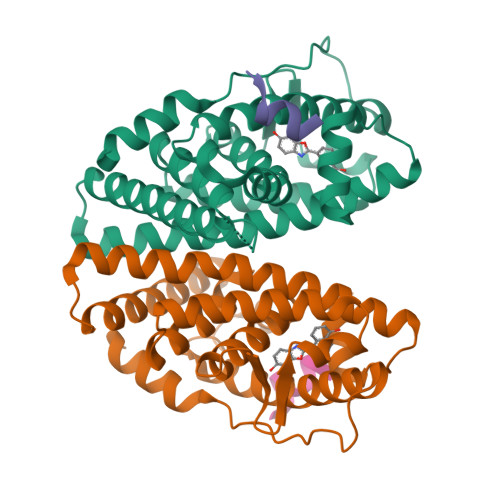

Crystal Structure of Estrogen Receptor beta complexed with WAY-338


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.21 Å
  • R-Value Free: 0.267
  • R-Value Work: 0.218
  • R-Value Observed: 0.220

wwPDB Validation   3D Report Full Report


This is version 1.3 of the entry. See complete history


Literature

Design and synthesis of aryl diphenolic azoles as potent and selective estrogen receptor-beta ligands.

Malamas, M.S.Manas, E.S.McDevitt, R.E.Gunawan, I.Xu, Z.B.Collini, M.D.Miller, C.P.Dinh, T.Henderson, R.A.Keith Jr., J.C.Harris, H.A.

(2004) J Med Chem 47: 5021-5040

  • DOI: https://doi.org/10.1021/jm049719y
  • Primary Citation of Related Structures:
    1U3Q, 1U3R, 1U3S

  • PubMed Abstract:

    New diphenolic azoles as highly selective estrogen receptor-beta agonists are reported. The more potent and selective analogues of these series have comparable binding affinities for ERbeta as the natural ligand 17beta-estradiol but are >100-fold selective over ERalpha. Our design strategy not only followed a traditional SAR approach but also was supported by X-ray structures of ERbeta cocrystallized with various ligands as well as molecular modeling studies. These strategies enabled us to take advantage of a single conservative residue substitution in the ligand-binding pocket, ERalpha Met(421) --> ERbeta Ile(373), to optimize ERbeta selectivity. The 7-position-substituted benzoxazoles (Table 5) were the most selective ligands of both azole series, with ERB-041 (117) being >200-fold selective for ERbeta. The majority of ERbeta selective agonists tested that were at least approximately 50-fold selective displayed a consistent in vivo profile: they were inactive in several models of classic estrogen action (uterotrophic, osteopenia, and vasomotor instability models) and yet were active in the HLA-B27 transgenic rat model of inflammatory bowel disease. These data suggest that ERbeta-selective agonists are devoid of classic estrogenic effects and may offer a novel therapy to treat certain inflammatory conditions.


  • Organizational Affiliation

    Department of Chemical and Screening Sciences, Wyeth Research, CN 8000, Princeton, NJ 08543-8000, USA. malamam@wyeth.com


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Estrogen receptor betaA,
C [auth B]
241Homo sapiensMutation(s): 0
Gene Names: ESR2NR3A2ESTRB
UniProt & NIH Common Fund Data Resources
Find proteins for Q92731 (Homo sapiens)
Explore Q92731
Go to UniProtKB:  Q92731
PHAROS:  Q92731
GTEx:  ENSG00000140009
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ92731
Sequence Annotations
Expand
  • Reference Sequence

Find similar proteins by:  Sequence   |   3D Structure

Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
steroid receptor coactivator-1B [auth C],
D
13N/AMutation(s): 0
EC: 2.3.1.48
UniProt & NIH Common Fund Data Resources
Find proteins for Q15788 (Homo sapiens)
Explore Q15788
Go to UniProtKB:  Q15788
PHAROS:  Q15788
GTEx:  ENSG00000084676
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ15788
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
338
Query on 338

Download Ideal Coordinates CCD File
E [auth A],
F [auth B]
2-(5-HYDROXY-NAPHTHALEN-1-YL)-1,3-BENZOOXAZOL-6-OL
C17 H11 N O3
JHOZVRGNIYFYHE-UHFFFAOYSA-N
Binding Affinity Annotations
IDSourceBinding Affinity
338 PDBBind:  1U3R IC50: 5 (nM) from 1 assay(s)
BindingDB:  1U3R IC50: 5 (nM) from 1 assay(s)
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.21 Å
  • R-Value Free: 0.267
  • R-Value Work: 0.218
  • R-Value Observed: 0.220
  • Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 52.154α = 90
b = 87.884β = 90
c = 99.432γ = 90
Software Package:
Software NamePurpose
DENZOdata reduction
SCALEPACKdata scaling
AMoREphasing
CNSrefinement

Structure Validation

View Full Validation Report



Entry History

Revision History  (Full details and data files)

  • Version 1.0: 2005-07-26
    Type: Initial release
  • Version 1.1: 2008-04-30
    Changes: Version format compliance
  • Version 1.2: 2011-07-13
    Changes: Version format compliance
  • Version 1.3: 2024-02-14
    Changes: Data collection, Database references, Derived calculations
