3CJO

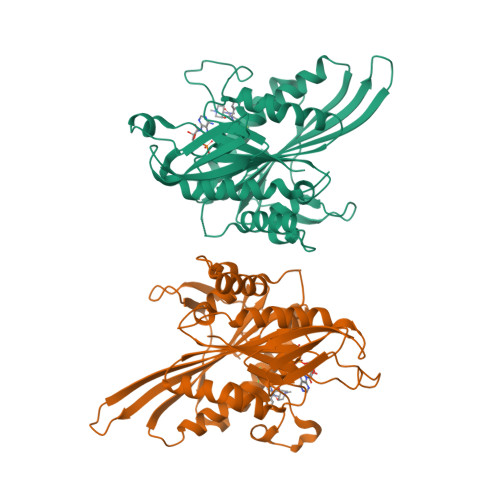

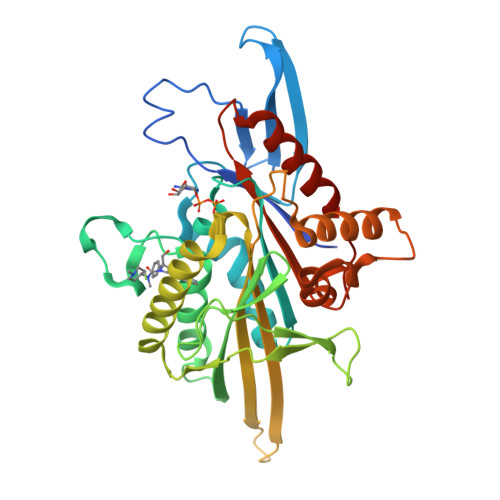

Crystal structure of KSP in complex with inhibitor 30


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.28 Å
  • R-Value Free: 0.261
  • R-Value Work: 0.181
  • R-Value Observed: 0.185

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.2 of the entry. See complete history


Literature

Kinesin spindle protein (KSP) inhibitors. 9. Discovery of (2S)-4-(2,5-difluorophenyl)-n-[(3R,4S)-3-fluoro-1-methylpiperidin-4-yl]-2-(hydroxymethyl)-N-methyl-2-phenyl-2,5-dihydro-1H-pyrrole-1-carboxamide (MK-0731) for the treatment of taxane-refractory cancer.

Cox, C.D.Coleman, P.J.Breslin, M.J.Whitman, D.B.Garbaccio, R.M.Fraley, M.E.Buser, C.A.Walsh, E.S.Hamilton, K.Schaber, M.D.Lobell, R.B.Tao, W.Davide, J.P.Diehl, R.E.Abrams, M.T.South, V.J.Huber, H.E.Torrent, M.Prueksaritanont, T.Li, C.Slaughter, D.E.Mahan, E.Fernandez-Metzler, C.Yan, Y.Kuo, L.C.Kohl, N.E.Hartman, G.D.

(2008) J Med Chem 51: 4239-4252

  • DOI: https://doi.org/10.1021/jm800386y
  • Primary Citation of Related Structures:
    3CJO

  • PubMed Abstract:

    Inhibition of kinesin spindle protein (KSP) is a novel mechanism for treatment of cancer with the potential to overcome limitations associated with currently employed cytotoxic agents. Herein, we describe a C2-hydroxymethyl dihydropyrrole KSP inhibitor ( 11) that circumvents hERG channel binding and poor in vivo potency, issues that limited earlier compounds from our program. However, introduction of the C2-hydroxymethyl group caused 11 to be a substrate for cellular efflux by P-glycoprotein (Pgp). Utilizing knowledge garnered from previous KSP inhibitors, we found that beta-fluorination modulated the p K a of the piperidine nitrogen and reduced Pgp efflux, but the resulting compound ( 14) generated a toxic metabolite in vivo. Incorporation of fluorine in a strategic, metabolically benign position by synthesis of an N-methyl-3-fluoro-4-(aminomethyl)piperidine urea led to compound 30 that has an optimal in vitro and metabolic profile. Compound 30 (MK-0731) was recently studied in a phase I clinical trial in patients with taxane-refractory solid tumors.


  • Organizational Affiliation

    Department of Medicinal Chemistry, Merck Research Laboratories, P.O. Box 4, Sumneytown Pike, West Point, Pennsylvania 19486, USA. chris_cox@merck.com


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Kinesin-like protein KIF11
A, B
367Homo sapiensMutation(s): 0
Gene Names: KIF11EG5KNSL1TRIP5
UniProt & NIH Common Fund Data Resources
Find proteins for P52732 (Homo sapiens)
Explore P52732
Go to UniProtKB:  P52732
PHAROS:  P52732
GTEx:  ENSG00000138160
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP52732
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 3 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
K30
Query on K30

Download Ideal Coordinates CCD File
E [auth A],
H [auth B]
(2S)-4-(2,5-difluorophenyl)-N-[(3R,4S)-3-fluoro-1-methylpiperidin-4-yl]-2-(hydroxymethyl)-N-methyl-2-phenyl-2,5-dihydro-1H-pyrrole-1-carboxamide
C25 H28 F3 N3 O2
MYBGWENAVMIGMM-GIFXNVAJSA-N
ADP
Query on ADP

Download Ideal Coordinates CCD File
D [auth A],
G [auth B]
ADENOSINE-5'-DIPHOSPHATE
C10 H15 N5 O10 P2
XTWYTFMLZFPYCI-KQYNXXCUSA-N
MG
Query on MG

Download Ideal Coordinates CCD File
C [auth A],
F [auth B]
MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
Binding Affinity Annotations
IDSourceBinding Affinity
K30 PDBBind:  3CJO IC50: 2.2 (nM) from 1 assay(s)
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.28 Å
  • R-Value Free: 0.261
  • R-Value Work: 0.181
  • R-Value Observed: 0.185
  • Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 68.758α = 90
b = 79.374β = 90
c = 158.853γ = 90
Software Package:
Software NamePurpose
BUSTER-TNTrefinement
CrystalCleardata collection
HKL-2000data reduction
HKL-2000data scaling
CNSphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

  • Released Date: 2008-07-01
  • Deposition Author(s): Yan, Y.

Revision History  (Full details and data files)

  • Version 1.0: 2008-07-01
    Type: Initial release
  • Version 1.1: 2011-07-13
    Changes: Version format compliance
  • Version 1.2: 2023-08-30
    Changes: Data collection, Database references, Derived calculations, Refinement description
