3FOO | pdb_00003foo

A Triangular Cytochrome b562 Superstructure Mediated by Ni Coordination - Monoclinic Form


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.40 Å
  • R-Value Free:
    0.268 (Depositor), 0.269 (DCC)
  • R-Value Work:
    0.209 (Depositor), 0.210 (DCC)
  • R-Value Observed:
    0.213 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted HEMClick on this verticalbar to view detailsBest fitted PXXClick on this verticalbar to view details

This is version 1.4 of the entry. See complete history


Literature

A superprotein triangle driven by nickel(II) coordination: exploiting non-natural metal ligands in protein self-assembly

Radford, R.J.Tezcan, F.A.

(2009) J Am Chem Soc 131: 9136-9137

  • DOI: https://doi.org/10.1021/ja9000695
  • Primary Citation of Related Structures:
    3FOO, 3FOP

  • PubMed Abstract:

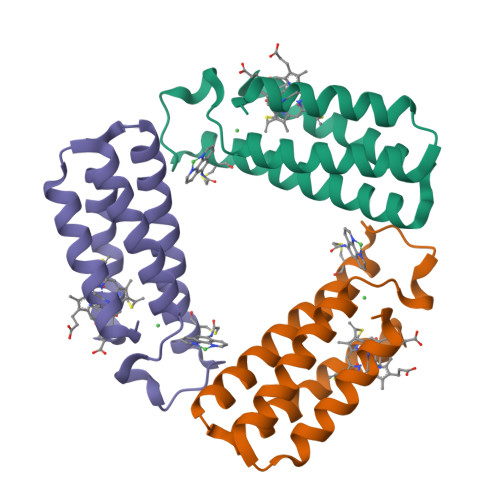

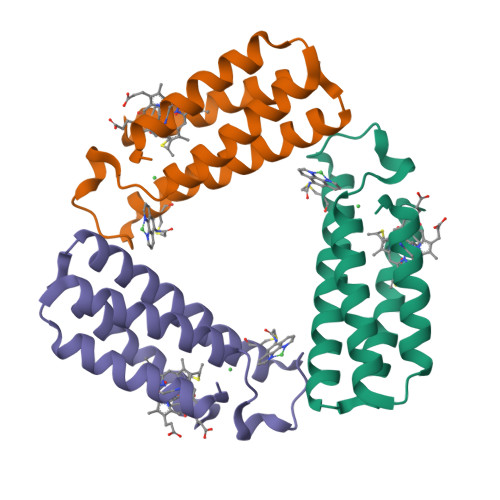

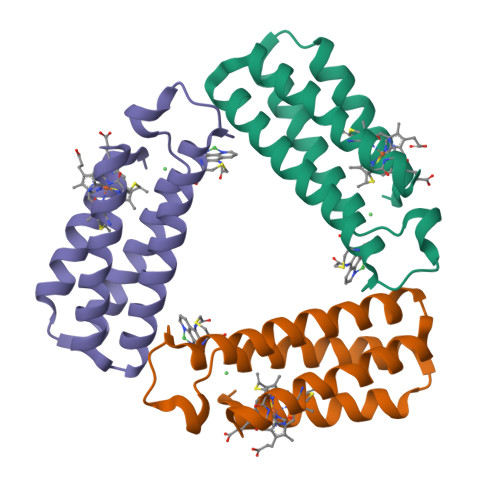

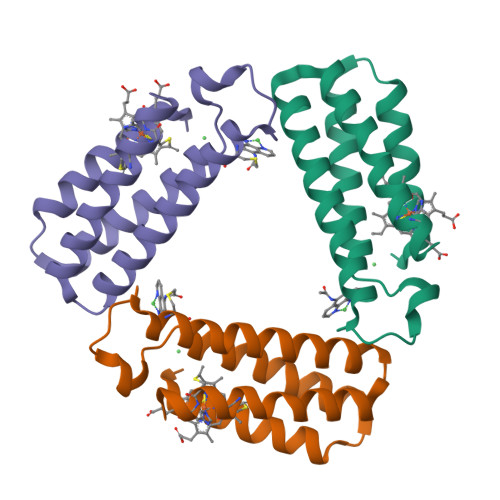

    We previously devised a strategy (metal-directed protein self-assembly, MDPSA) that utilizes the simultaneous stability, lability, and directionality of metal-ligand bonds to drive protein-protein interactions. Here we show that both the structural and functional scopes of MDPSA can be broadened by incorporation of non-natural metal-chelating ligands onto protein surfaces. A cytochrome cb(562) variant, MBP-Phen1, which features a covalently attached phenanthroline (Phen) group on its surface, self-assembles into an unusual triangular architecture (Ni(3):MBP-Phen1(3)) upon binding Ni as a result of specific Phen-protein interactions. The crystal structure of Ni(3):MBP-Phen1(3) reveals that the Phen group is buried in a small pocket on the protein surface, which results in an unsaturated Ni coordination environment.


  • Organizational Affiliation

    Department of Chemistry and Biochemistry, University of California, San Diego, 9500 Gilman Drive, La Jolla, California 92093-0356, USA.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Soluble cytochrome b562
A, B, C, D, E
106Escherichia coliMutation(s): 7
Gene Names: cybC
UniProt
Find proteins for P0ABE7 (Escherichia coli)
Explore P0ABE7
Go to UniProtKB:  P0ABE7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0ABE7
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 3 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
HEM
Query on HEM

Download Ideal Coordinates CCD File
AB [auth K]
CA [auth E]
EB [auth L]
GA [auth F]
KA [auth G]
PROTOPORPHYRIN IX CONTAINING FE
C34 H32 Fe N4 O4
KABFMIBPWCXCRK-RGGAHWMASA-L
PXX
Query on PXX

Download Ideal Coordinates CCD File
BB [auth K]
DA [auth E]
FB [auth L]
HA [auth F]
LA [auth G]
N-1,10-phenanthrolin-5-ylacetamide
C14 H11 N3 O
AAJXINSCZMZERD-UHFFFAOYSA-N
NI
Query on NI

Download Ideal Coordinates CCD File
AA [auth D]
BA [auth D]
CB [auth K]
DB [auth K]
EA [auth E]
NICKEL (II) ION
Ni
VEQPNABPJHWNSG-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.40 Å
  • R-Value Free:  0.268 (Depositor), 0.269 (DCC)
  • R-Value Work:  0.209 (Depositor), 0.210 (DCC)
  • R-Value Observed: 0.213 (Depositor)
Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 70.339α = 90
b = 107.396β = 105.52
c = 102.051γ = 90
Software Package:
Software NamePurpose
MOSFLMdata reduction
SCALAdata scaling
REFMACrefinement
PDB_EXTRACTdata extraction
ADSCdata collection
MOLREPphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted HEMClick on this verticalbar to view detailsBest fitted PXXClick on this verticalbar to view details

Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2009-07-14
    Type: Initial release
  • Version 1.1: 2011-07-13
    Changes: Advisory, Version format compliance
  • Version 1.2: 2021-10-20
    Changes: Database references, Derived calculations
  • Version 1.3: 2023-09-06
    Changes: Data collection, Refinement description
  • Version 1.4: 2024-12-25
    Changes: Derived calculations, Structure summary
