3TF0

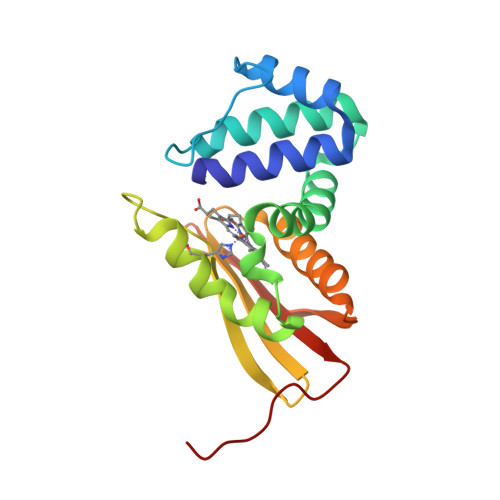

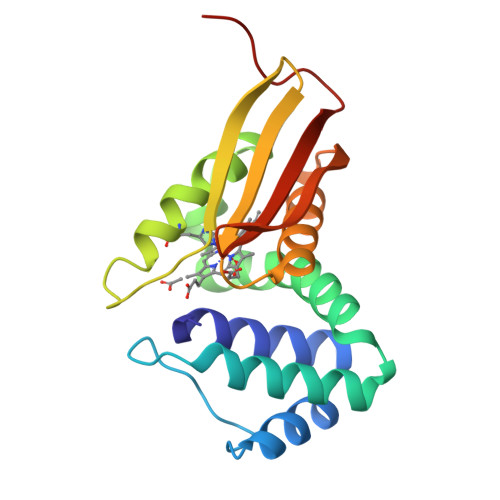

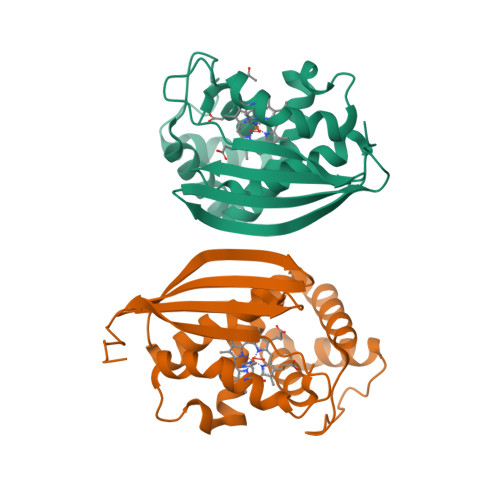

Crystal structure of an H-NOX protein from T. tengcongensis


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.74 Å
  • R-Value Free: 0.229
  • R-Value Work: 0.202
  • R-Value Observed: 0.203

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.2 of the entry. See complete history


Literature

Tunnels modulate ligand flux in a heme nitric oxide/oxygen binding (H-NOX) domain.

Winter, M.B.Herzik, M.A.Kuriyan, J.Marletta, M.A.

(2011) Proc Natl Acad Sci U S A 108: E881-E889

  • DOI: https://doi.org/10.1073/pnas.1114038108
  • Primary Citation of Related Structures:
    3TF0, 3TF1, 3TF8, 3TF9, 3TFA, 3TFD, 3TFE, 3TFF, 3TFG

  • PubMed Abstract:

    Interior topological features, such as pockets and channels, have evolved in proteins to regulate biological functions by facilitating the diffusion of biomolecules. Decades of research using the globins as model heme proteins have clearly highlighted the importance of gas pockets around the heme in controlling the capture and release of O(2). However, much less is known about how ligand migration contributes to the diverse functions of other heme protein scaffolds. Heme nitric oxide/oxygen binding (H-NOX) domains are a conserved family of gas-sensing heme proteins with a divergent fold that are critical to numerous signaling pathways. Utilizing X-ray crystallography with xenon, a tunnel network has been shown to serve as a molecular pathway for ligand diffusion. Structure-guided mutagenesis results show that the tunnels have unexpected effects on gas-sensing properties in H-NOX domains. The findings provide insights on how the flux of biomolecules through protein scaffolds modulates protein chemistry.


  • Organizational Affiliation

    Department of Chemistry, California Institute for Quantitative Biosciences, University of California, Berkeley, CA 94720, USA.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Methyl-accepting chemotaxis protein
A, B
188Caldanaerobacter subterraneus subsp. tengcongensisMutation(s): 0
Gene Names: Tar4TTE0680
UniProt
Find proteins for Q8RBX6 (Caldanaerobacter subterraneus subsp. tengcongensis (strain DSM 15242 / JCM 11007 / NBRC 100824 / MB4))
Explore Q8RBX6
Go to UniProtKB:  Q8RBX6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8RBX6
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.74 Å
  • R-Value Free: 0.229
  • R-Value Work: 0.202
  • R-Value Observed: 0.203
  • Space Group: P 21 21 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 80.502α = 90
b = 130.766β = 90
c = 42.736γ = 90
Software Package:
Software NamePurpose
Blu-Icedata collection
PHASERphasing
PHENIXrefinement
HKL-2000data reduction
HKL-2000data scaling

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2011-11-09
    Type: Initial release
  • Version 1.1: 2017-10-25
    Changes: Advisory, Author supporting evidence
  • Version 1.2: 2023-09-13
    Changes: Advisory, Data collection, Database references, Derived calculations, Refinement description
