4AVT

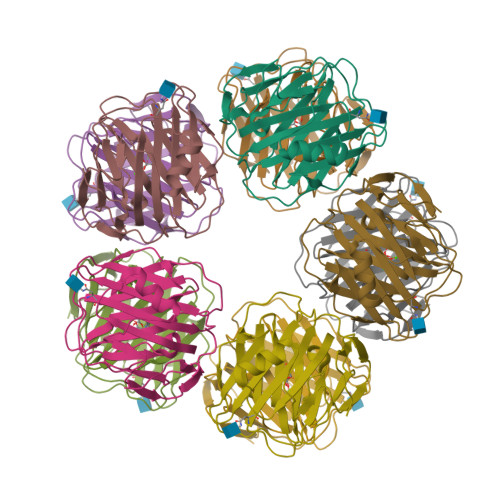

Structure of CPHPC bound to Serum Amyloid P Component


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 3.20 Å
  • R-Value Free: 0.197
  • R-Value Work: 0.189
  • R-Value Observed: 0.189

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.5 of the entry. See complete history


Literature

Interaction of Serum Amyloid P Component with Hexanoyl Bis(D-Proline) (Cphpc)

Kolstoe, S.E.Jenvey, M.C.Purvis, A.Light, M.E.Thompson, D.Hughes, P.Pepys, M.B.Wood, S.P.

(2014) Acta Crystallogr D Biol Crystallogr 70: 2232

  • DOI: https://doi.org/10.1107/S1399004714013455
  • Primary Citation of Related Structures:
    4AVS, 4AVT, 4AVV, 4AYU

  • PubMed Abstract:

    Under physiological conditions, the pentameric human plasma protein serum amyloid P component (SAP) binds hexanoyl bis(D-proline) (R-1-{6-[R-2-carboxy-pyrrolidin-1-yl]-6-oxo-hexanoyl}pyrrolidine-2-carboxylic acid; CPHPC) through its D-proline head groups in a calcium-dependent interaction. Cooperative effects in binding lead to a substantial enhancement of affinity. Five molecules of the bivalent ligand cross-link and stabilize pairs of SAP molecules, forming a decameric complex that is rapidly cleared from the circulation by the liver. Here, it is reported that X-ray analysis of the SAP complex with CPHPC and cadmium ions provides higher resolution detail of the interaction than is observed with calcium ions. Conformational isomers of CPHPC observed in solution by HPLC and by X-ray analysis are compared with the protein-bound form. These are discussed in relation to the development of CPHPC to provide SAP depletion for the treatment of amyloidosis and other indications.


  • Organizational Affiliation

    Laboratory of Protein Crystallography, Wolfson Drug Discovery Unit, Centre for Amyloidosis and Acute Phase Proteins, Division of Medicine (Royal Free Campus), University College London, Rowland Hill Street, London NW3 2PF, England.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
SERUM AMYLOID P-COMPONENT
A, B, C, D, E
A, B, C, D, E, F, G, H, I, J
204Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P02743 (Homo sapiens)
Explore P02743
Go to UniProtKB:  P02743
PHAROS:  P02743
GTEx:  ENSG00000132703
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP02743
Glycosylation
Glycosylation Sites: 1Go to GlyGen: P02743-1
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 3 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
GHE
Query on GHE

Download Ideal Coordinates CCD File
AA [auth E],
HA [auth G],
P [auth B],
RA [auth J],
T [auth C]
(2R)-1-[6-[(2R)-2-carboxypyrrolidin-1-yl]-6-oxidanylidene-hexanoyl]pyrrolidine-2-carboxylic acid
C16 H24 N2 O6
HZLAWYIBLZNRFZ-VXGBXAGGSA-N
NAG
Query on NAG

Download Ideal Coordinates CCD File
BA [auth E]
EA [auth F]
IA [auth G]
LA [auth H]
M [auth A]
BA [auth E],
EA [auth F],
IA [auth G],
LA [auth H],
M [auth A],
OA [auth I],
Q [auth B],
SA [auth J],
U [auth C],
X [auth D]
2-acetamido-2-deoxy-beta-D-glucopyranose
C8 H15 N O6
OVRNDRQMDRJTHS-FMDGEEDCSA-N
CA
Query on CA

Download Ideal Coordinates CCD File
CA [auth F]
DA [auth F]
FA [auth G]
GA [auth G]
JA [auth H]
CA [auth F],
DA [auth F],
FA [auth G],
GA [auth G],
JA [auth H],
K [auth A],
KA [auth H],
L [auth A],
MA [auth I],
N [auth B],
NA [auth I],
O [auth B],
PA [auth J],
QA [auth J],
R [auth C],
S [auth C],
V [auth D],
W [auth D],
Y [auth E],
Z [auth E]
CALCIUM ION
Ca
BHPQYMZQTOCNFJ-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 3.20 Å
  • R-Value Free: 0.197
  • R-Value Work: 0.189
  • R-Value Observed: 0.189
  • Space Group: P 43 21 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 230.864α = 90
b = 230.864β = 90
c = 281.393γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
MOLREPphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2013-06-19
    Type: Initial release
  • Version 1.1: 2014-08-06
    Changes: Database references
  • Version 1.2: 2014-10-22
    Changes: Database references
  • Version 1.3: 2020-07-29
    Type: Remediation
    Reason: Carbohydrate remediation
    Changes: Data collection, Derived calculations, Other, Structure summary
  • Version 1.4: 2023-12-20
    Changes: Data collection, Database references, Refinement description, Structure summary
  • Version 1.5: 2024-10-23
    Changes: Structure summary
