4LXB

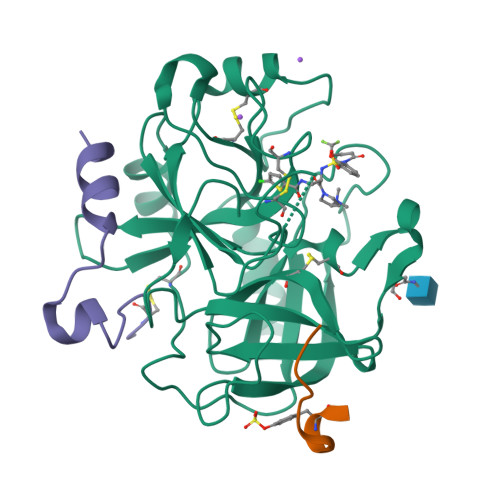

Crystal Structure Analysis of thrombin in complex with compound D58


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.61 Å
  • R-Value Free: 0.228
  • R-Value Work: 0.190
  • R-Value Observed: 0.192

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.3 of the entry. See complete history


Literature

5-Chlorothiophene-2-carboxylic acid [(S)-2-[2-methyl-3-(2-oxopyrrolidin-1-yl)benzenesulfonylamino]-3-(4-methylpiperazin-1-yl)-3-oxopropyl]amide (SAR107375), a selective and potent orally active dual thrombin and factor Xa inhibitor.

Meneyrol, J.Follmann, M.Lassalle, G.Wehner, V.Barre, G.Rousseaux, T.Altenburger, J.M.Petit, F.Bocskei, Z.Schreuder, H.Alet, N.Herault, J.P.Millet, L.Dol, F.Florian, P.Schaeffer, P.Sadoun, F.Klieber, S.Briot, C.Bono, F.Herbert, J.M.

(2013) J Med Chem 56: 9441-9456

  • DOI: https://doi.org/10.1021/jm4005835
  • Primary Citation of Related Structures:
    4BTI, 4BTT, 4BTU, 4LOY, 4LXB

  • PubMed Abstract:

    Compound 15 (SAR107375), a novel potent dual thrombin and factor Xa inhibitor resulted from a rational optimization process. Starting from compound 14, with low factor Xa and modest anti-thrombin inhibitory activities (IC50's of 3.5 and 0.39 μM, respectively), both activities were considerably improved, notably through the incorporation of a neutral chlorothiophene P1 fragment and tuning of P2 and P3-P4 fragments. Final optimization of metabolic stability with microsomes led to the identification of 15, which displays strong activity in vitro vs factor Xa and thrombin (with Ki's of 1 and 8 nM, respectively). In addition 15 presents good selectivity versus related serine proteases (roughly 300-fold), including trypsin (1000-fold), and is very active (0.39 μM) in the thrombin generation time (TGT) coagulation assay in human platelet rich plasma (PRP). Potent in vivo activity in a rat model of venous thrombosis following iv and, more importantly, po administration was also observed (ED50 of 0.07 and 2.8 mg/kg, respectively). Bleeding liability was reduced in the rat wire coil model, more relevant to arterial thrombosis, with 15 (blood loss increase of 2-fold relative to the ED80 value) compared to rivaroxaban 2 and dabigatran etexilate 1a.


  • Organizational Affiliation

    Sanofi-Aventis R&D , 195 Route d'Espagne, 31036 Toulouse Cedex, France.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Prothrombin, Thrombin light chainA [auth H]259Homo sapiensMutation(s): 0
EC: 3.4.21.5
UniProt & NIH Common Fund Data Resources
Find proteins for P00734 (Homo sapiens)
Explore P00734
Go to UniProtKB:  P00734
PHAROS:  P00734
GTEx:  ENSG00000180210
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP00734
Glycosylation
Glycosylation Sites: 1Go to GlyGen: P00734-1
Sequence Annotations
Expand
  • Reference Sequence

Find similar proteins by:  Sequence   |   3D Structure

Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Hirudin variant-1B [auth I]13Hirudo medicinalisMutation(s): 0
UniProt
Find proteins for P01050 (Hirudo medicinalis)
Explore P01050
Go to UniProtKB:  P01050
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP01050
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
ProthrombinC [auth L]36Homo sapiensMutation(s): 0
EC: 3.4.21.5
UniProt & NIH Common Fund Data Resources
Find proteins for P00734 (Homo sapiens)
Explore P00734
Go to UniProtKB:  P00734
PHAROS:  P00734
GTEx:  ENSG00000180210
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP00734
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 3 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
7R9
Query on 7R9

Download Ideal Coordinates CCD File
G [auth H]5-Chloro-thiophene-2-carboxylic acid [(S)-2-[2-difluoromethoxy-3-(2-oxo-piperidin-1-yl)-benzenesulfonylamino]-3-((S)-3-dimethylamino-pyrrolidin-1-yl)-3-oxo-propyl]-amide
C26 H32 Cl F2 N5 O6 S2
GMYAFDWQODYJNI-IRXDYDNUSA-N
NAG
Query on NAG

Download Ideal Coordinates CCD File
D [auth H]2-acetamido-2-deoxy-beta-D-glucopyranose
C8 H15 N O6
OVRNDRQMDRJTHS-FMDGEEDCSA-N
NA
Query on NA

Download Ideal Coordinates CCD File
E [auth H],
F [auth H]
SODIUM ION
Na
FKNQFGJONOIPTF-UHFFFAOYSA-N
Modified Residues  1 Unique
IDChains TypeFormula2D DiagramParent
TYS
Query on TYS
B [auth I]L-PEPTIDE LINKINGC9 H11 N O6 STYR
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.61 Å
  • R-Value Free: 0.228
  • R-Value Work: 0.190
  • R-Value Observed: 0.192
  • Space Group: C 1 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 70.623α = 90
b = 71.274β = 100.84
c = 72.858γ = 90
Software Package:
Software NamePurpose
SCALEPACKdata scaling
BUSTER-TNTrefinement
PDB_EXTRACTdata extraction
CrystalCleardata collection
HKL-2000data reduction
AMoREphasing
BUSTERrefinement

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2014-06-11
    Type: Initial release
  • Version 1.1: 2019-10-16
    Changes: Data collection, Derived calculations
  • Version 1.2: 2020-07-29
    Type: Remediation
    Reason: Carbohydrate remediation
    Changes: Data collection, Derived calculations, Structure summary
  • Version 1.3: 2024-11-20
    Changes: Data collection, Database references, Structure summary
