4PL7

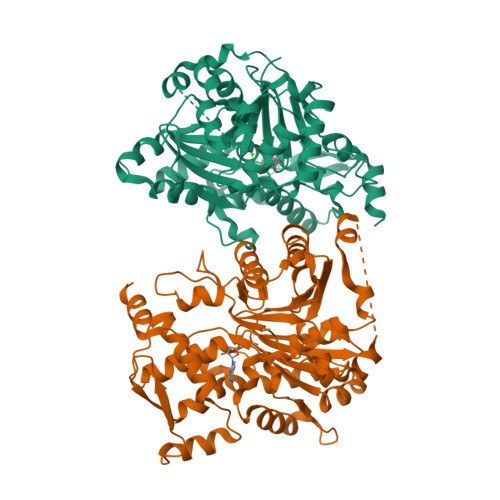

Structure of Komagataella pastoris actin-thymosin beta4 hybrid


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.30 Å
  • R-Value Free: 0.258
  • R-Value Work: 0.195
  • R-Value Observed: 0.198

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.2 of the entry. See complete history


Literature

Structural basis of thymosin-beta 4/profilin exchange leading to actin filament polymerization.

Xue, B.Leyrat, C.Grimes, J.M.Robinson, R.C.

(2014) Proc Natl Acad Sci U S A 111: E4596-E4605

  • DOI: https://doi.org/10.1073/pnas.1412271111
  • Primary Citation of Related Structures:
    4PL7, 4PL8

  • PubMed Abstract:

    Thymosin-β4 (Tβ4) and profilin are the two major sequestering proteins that maintain the pool of monomeric actin (G-actin) within cells of higher eukaryotes. Tβ4 prevents G-actin from joining a filament, whereas profilin:actin only supports barbed-end elongation. Here, we report two Tβ4:actin structures. The first structure shows that Tβ4 has two helices that bind at the barbed and pointed faces of G-actin, preventing the incorporation of the bound G-actin into a filament. The second structure displays a more open nucleotide binding cleft on G-actin, which is typical of profilin:actin structures, with a concomitant disruption of the Tβ4 C-terminal helix interaction. These structures, combined with biochemical assays and molecular dynamics simulations, show that the exchange of bound actin between Tβ4 and profilin involves both steric and allosteric components. The sensitivity of profilin to the conformational state of actin indicates a similar allosteric mechanism for the dissociation of profilin during filament elongation.


  • Organizational Affiliation

    Institute of Molecular and Cell Biology, A*STAR (Agency for Science, Technology and Research), Biopolis, Singapore 138673; bxue@imcb.a-star.edu.sg.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Actin,Thymosin beta-4
A, B
440Komagataella phaffii GS115Homo sapiens
This entity is chimeric
Mutation(s): 0
Gene Names: ACT1PAS_chr3_1169TMSB4XTB4XTHYB4TMSB4
EC: 3.6.4
UniProt & NIH Common Fund Data Resources
Find proteins for P62328 (Homo sapiens)
Explore P62328
Go to UniProtKB:  P62328
PHAROS:  P62328
GTEx:  ENSG00000205542
Find proteins for Q9P4D1 (Komagataella phaffii (strain GS115 / ATCC 20864))
Explore Q9P4D1
Go to UniProtKB:  Q9P4D1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupsP62328Q9P4D1
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.30 Å
  • R-Value Free: 0.258
  • R-Value Work: 0.195
  • R-Value Observed: 0.198
  • Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 56.508α = 90
b = 139.495β = 116.21
c = 56.485γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
DENZOdata collection
SCALEPACKdata reduction
PHASERphasing
PDB_EXTRACTdata extraction
Cootmodel building
PHASERmodel building
PHENIXrefinement

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2014-10-22
    Type: Initial release
  • Version 1.1: 2014-11-12
    Changes: Database references
  • Version 1.2: 2023-11-08
    Changes: Data collection, Database references, Derived calculations, Other, Refinement description, Source and taxonomy
