6B77

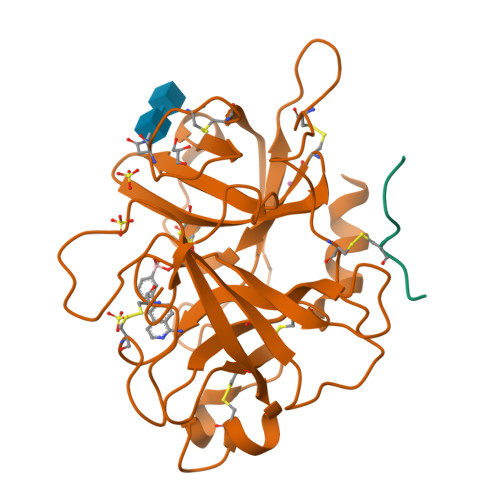

Structures of the two-chain human plasma factor XIIa co-crystallized with potent inhibitors


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.37 Å
  • R-Value Free: 0.218
  • R-Value Work: 0.174

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 2.2 of the entry. See complete history


Literature

Structures of human plasma beta-factor XIIa cocrystallized with potent inhibitors.

Dementiev, A.Silva, A.Yee, C.Li, Z.Flavin, M.T.Sham, H.Partridge, J.R.

(2018) Blood Adv 2: 549-558

  • DOI: https://doi.org/10.1182/bloodadvances.2018016337
  • Primary Citation of Related Structures:
    6B74, 6B77

  • PubMed Abstract:

    Activated factor XIIa (FXIIa) is a serine protease that has received a great deal of interest in recent years as a potential target for the development of new antithrombotics. Despite the strong interest in obtaining structural information, only the structure of the FXIIa catalytic domain in its zymogen conformation is available. In this work, reproducible experimental conditions found for the crystallization of human plasma β-FXIIa and crystal growth optimization have led to determination of the first structure of the active form of the enzyme. Two crystal structures of human plasma β-FXIIa complexed with small molecule inhibitors are presented herein. The first is the noncovalent inhibitor benzamidine. The second is an aminoisoquinoline containing a boronic acid-reactive group that targets the catalytic serine. Both benzamidine and the aminoisoquinoline bind in a canonical fashion typical of synthetic serine protease inhibitors, and the protease domain adopts a typical chymotrypsin-like serine protease active conformation. This novel structural data explains the basis of the FXII activation, provides insights into the enzymatic properties of β-FXIIa, and is a great aid toward the further design of protease inhibitors for human FXIIa.


  • Organizational Affiliation

    Shamrock Structures, LLC, Woodridge, IL; and.


Macromolecules

Find similar proteins by:  Sequence   |   3D Structure

Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Coagulation factor XII9Homo sapiensMutation(s): 0
EC: 3.4.21.38
UniProt & NIH Common Fund Data Resources
Find proteins for P00748 (Homo sapiens)
Explore P00748
Go to UniProtKB:  P00748
PHAROS:  P00748
GTEx:  ENSG00000131187
Entity Groups
UniProt GroupP00748
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Coagulation factor XII243Homo sapiensMutation(s): 0
EC: 3.4.21.38
UniProt & NIH Common Fund Data Resources
Find proteins for P00748 (Homo sapiens)
Explore P00748
Go to UniProtKB:  P00748
PHAROS:  P00748
GTEx:  ENSG00000131187
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP00748
Glycosylation
Glycosylation Sites: 1Go to GlyGen: P00748-1
Sequence Annotations
Expand
  • Reference Sequence
Oligosaccharides

Help

Entity ID: 3
MoleculeChains Length2D Diagram Glycosylation3D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
C
2N-Glycosylation
Glycosylation Resources
GlyTouCan:  G42666HT
GlyCosmos:  G42666HT
GlyGen:  G42666HT
Small Molecules
Ligands 4 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
CWV
Query on CWV

Download Ideal Coordinates CCD File
D [auth B][3-(1-aminoisoquinolin-6-yl)phenyl]boronic acid
C15 H13 B N2 O2
CCUGLTODPQTEBR-UHFFFAOYSA-N
IOD
Query on IOD

Download Ideal Coordinates CCD File
E [auth B],
F [auth B]
IODIDE ION
I
XMBWDFGMSWQBCA-UHFFFAOYSA-M
SO4
Query on SO4

Download Ideal Coordinates CCD File
G [auth B],
H [auth B],
I [auth B]
SULFATE ION
O4 S
QAOWNCQODCNURD-UHFFFAOYSA-L
GOL
Query on GOL

Download Ideal Coordinates CCD File
J [auth B]GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.37 Å
  • R-Value Free: 0.218
  • R-Value Work: 0.174
  • Space Group: I 41
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 79.402α = 90
b = 79.402β = 90
c = 122.246γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
HKL-2000data reduction
HKL-2000data scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2018-03-21
    Type: Initial release
  • Version 2.0: 2020-07-29
    Type: Remediation
    Reason: Carbohydrate remediation
    Changes: Advisory, Atomic model, Data collection, Derived calculations, Structure summary
  • Version 2.1: 2023-10-04
    Changes: Data collection, Database references, Refinement description, Structure summary
  • Version 2.2: 2024-11-13
    Changes: Structure summary
