6YE3

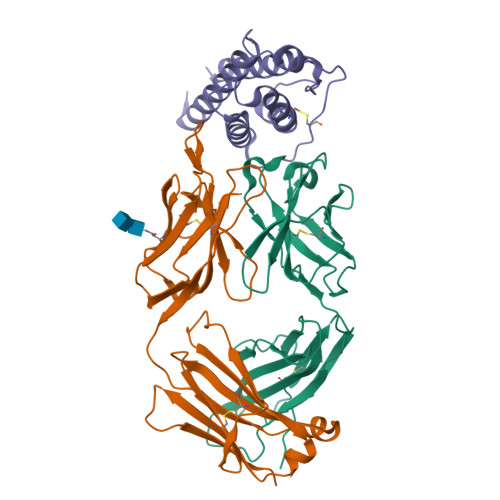

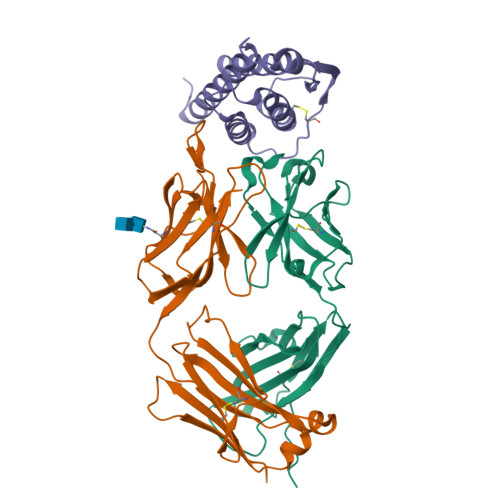

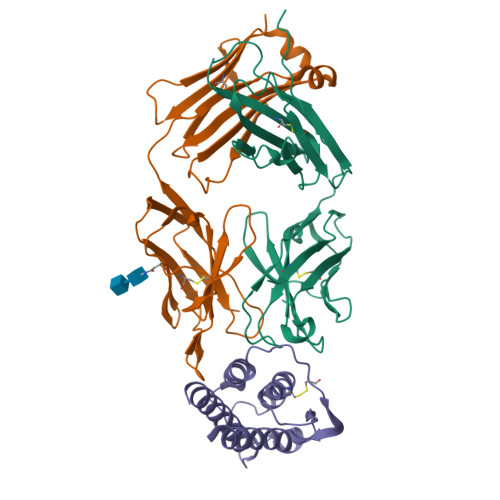

IL-2 in complex with a Fab fragment from UFKA-20


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.89 Å
  • R-Value Free: 0.283
  • R-Value Work: 0.215
  • R-Value Observed: 0.218

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.2 of the entry. See complete history


Literature

Receptor-gated IL-2 delivery by an anti-human IL-2 antibody activates regulatory T cells in three different species.

Karakus, U.Sahin, D.Mittl, P.R.E.Mooij, P.Koopman, G.Boyman, O.

(2020) Sci Transl Med 12

  • DOI: https://doi.org/10.1126/scitranslmed.abb9283
  • Primary Citation of Related Structures:
    6YE3

  • PubMed Abstract:

    Stimulation of regulatory T (T reg ) cells holds great promise for the treatment of autoimmune, chronic inflammatory, and certain metabolic diseases. Recent clinical trials with low-dose interleukin-2 (IL-2) to expand T reg cells led to beneficial results in autoimmunity, but IL-2 immunotherapy can activate both T reg cells and pathogenic T cells. Use of IL-2 receptor α (IL-2Rα, CD25)-biased IL-2/anti-IL-2 antibody complexes improves IL-2 selectivity for T reg cells; however, the mechanism of action of such IL-2 complexes is incompletely understood, thus hampering their translation into clinical trials. Using a cell-based and dynamic IL-2R platform, we identified a particular anti-human IL-2 antibody, termed UFKA-20. When bound to UFKA-20, IL-2 failed to stimulate cells expressing IL-2Rβ (CD122) and IL-2Rγ (CD132), unless these cells also expressed high amounts of CD25. CD25 allowed IL-2/UFKA-20 complexes to bind, and binding to CD25 in the presence of CD122 and CD132 was followed by rapid dissociation of UFKA-20 from IL-2, delivery of IL-2 to CD122 and CD132, and intracellular signaling. IL-2/UFKA-20 complexes efficiently and preferentially stimulated CD4 + T reg cells in freshly isolated human T cells ex vivo and in mice and rhesus macaques in vivo. The crystal structure of the IL-2/UFKA-20 complex demonstrated that UFKA-20 interfered with IL-2 binding to CD122 and, to a lesser extent, also CD25. Together, we translated CD25-biased IL-2 complexes from mice to nonhuman primates and extended our mechanistic understanding of how CD25-biasing anti-human IL-2 antibodies work, which paves the way to clinical trials of CD25-biased IL-2 complexes.


  • Organizational Affiliation

    Department of Immunology, University Hospital Zurich, CH-8091 Zurich, Switzerland.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Chains: A,D,G
A, D, G
447Homo sapiensMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Chains: B,E,H
B, E, H
219Homo sapiensMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Glycosylation
Glycosylation Sites: 1
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
Interleukin-2
C, F, I
134Homo sapiensMutation(s): 0
Gene Names: IL2
UniProt & NIH Common Fund Data Resources
Find proteins for P60568 (Homo sapiens)
Explore P60568
Go to UniProtKB:  P60568
PHAROS:  P60568
GTEx:  ENSG00000109471
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP60568
Sequence Annotations
Expand
  • Reference Sequence
Oligosaccharides

Help

Entity ID: 4
MoleculeChains Length2D Diagram Glycosylation3D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
J, K, L
2N-Glycosylation
Glycosylation Resources
GlyTouCan:  G42666HT
GlyCosmos:  G42666HT
GlyGen:  G42666HT
Experimental Data & Validation

Experimental Data

Unit Cell:
Length ( Å )Angle ( ˚ )
a = 238.384α = 90
b = 92.547β = 100.112
c = 121.892γ = 90
Software Package:
Software NamePurpose
BUSTERrefinement
PHENIXrefinement
XDSdata reduction
Aimlessdata scaling
MOLREPphasing

Structure Validation

View Full Validation Report



Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2020-12-30
    Type: Initial release
  • Version 1.1: 2024-01-24
    Changes: Data collection, Database references, Refinement description
  • Version 1.2: 2024-11-13
    Changes: Structure summary
