9G8S | pdb_00009g8s

C3 reconstruction of extended phiCD508 needle


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.96 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.0 of the entry. See complete history


Literature

Molecular mechanism of bacteriophage contraction structure of an S-layer-penetrating bacteriophage.

Wilson, J.S.Fortier, L.C.Fagan, R.P.Bullough, P.A.

(2025) Life Sci Alliance 8

  • DOI: https://doi.org/10.26508/lsa.202403088
  • Primary Citation of Related Structures:
    9G8S, 9GAY, 9GAZ, 9GB0, 9GB1, 9GB2, 9GB3, 9GB4, 9GB5, 9GB6, 9GB7, 9GB8

  • PubMed Abstract:

    The molecular details of phage tail contraction and bacterial cell envelope penetration remain poorly understood and are completely unknown for phages infecting bacteria enveloped by proteinaceous S-layers. Here, we reveal the extended and contracted atomic structures of an intact contractile-tailed phage (φCD508) that binds to and penetrates the protective S-layer of the Gram-positive human pathogen Clostridioides difficile The tail is unusually long (225 nm), and it is also notable that the tail contracts less than those studied in related contractile injection systems such as the model phage T4 (∼20% compared with ∼50%). Surprisingly, we find no evidence of auxiliary enzymatic domains that other phages exploit in cell wall penetration, suggesting that sufficient energy is released upon tail contraction to penetrate the S-layer and the thick cell wall without enzymatic activity. Instead, the unusually long tail length, which becomes more flexible upon contraction, likely contributes toward the required free energy release for envelope penetration.


  • Organizational Affiliation

    Molecular Microbiology, School of Biosciences, University of Sheffield, Sheffield, UK j.s.wilson@sheffield.ac.uk.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Baseplate J family protein378Clostridioides phage phiCD508Mutation(s): 0
Gene Names: phiMMP02_gp23
UniProt
Find proteins for J9QE72 (Clostridium phage phiMMP02)
Explore J9QE72
Go to UniProtKB:  J9QE72
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupJ9QE72
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
XkdT-related protein157Clostridioides phage phiCD508Mutation(s): 0
Gene Names: phiMMP02_gp24
UniProt
Find proteins for J9QE20 (Clostridium phage phiMMP02)
Explore J9QE20
Go to UniProtKB:  J9QE20
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupJ9QE20
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
Peptidoglycan-binding LysM protein223Clostridioides phage phiCD508Mutation(s): 0
Gene Names: phiMMP02_gp19
UniProt
Find proteins for J9QE19 (Clostridium phage phiMMP02)
Explore J9QE19
Go to UniProtKB:  J9QE19
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupJ9QE19
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage
XkdM-related protein130Clostridioides phage phiCD508Mutation(s): 0
Gene Names: phiMMP02_gp14
UniProt
Find proteins for J9QE18 (Clostridium phage phiMMP02)
Explore J9QE18
Go to UniProtKB:  J9QE18
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupJ9QE18
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage
Tail sheath460Clostridioides phage phiCD508Mutation(s): 0
Gene Names: phiMMP02_gp13
UniProt
Find proteins for J9QE70 (Clostridium phage phiMMP02)
Explore J9QE70
Go to UniProtKB:  J9QE70
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupJ9QE70
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains Sequence LengthOrganismDetailsImage
XkdS-related protein125Clostridioides phage phiCD508Mutation(s): 0
Gene Names: phiMMP02_gp22
UniProt
Find proteins for J9QEB8 (Clostridium phage phiMMP02)
Explore J9QEB8
Go to UniProtKB:  J9QEB8
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupJ9QEB8
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage

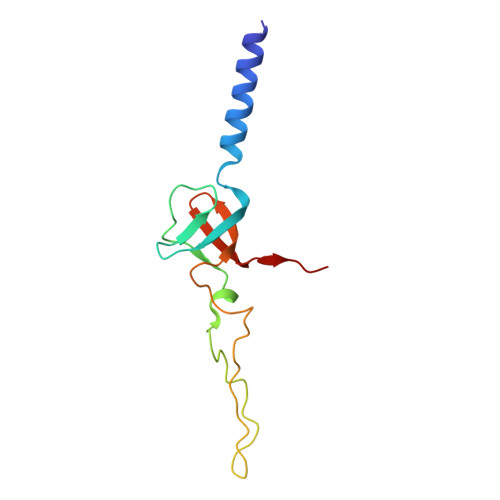

Phage proteinQA [auth r],
RA [auth v],
TA [auth s]
112Clostridioides phage phiCD508Mutation(s): 0
Gene Names: phiMMP02_gp21
UniProt
Find proteins for J9QD14 (Clostridium phage phiMMP02)
Explore J9QD14
Go to UniProtKB:  J9QD14
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupJ9QD14
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 8
MoleculeChains Sequence LengthOrganismDetailsImage

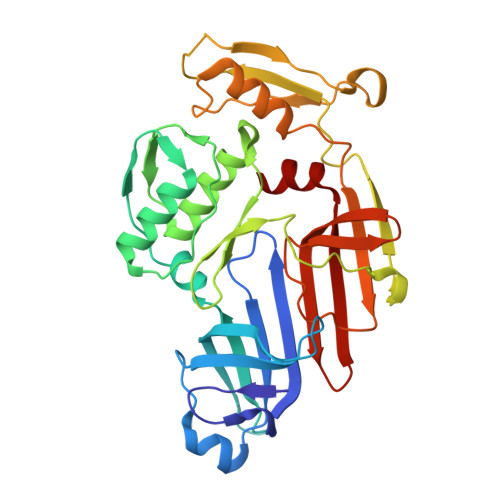

XkdQ-related proteinSA [auth q],
UA [auth t],
VA [auth u]
316Clostridioides phage phiCD508Mutation(s): 0
Gene Names: phiMMP02_gp20
UniProt
Find proteins for J9QDX2 (Clostridium phage phiMMP02)
Explore J9QDX2
Go to UniProtKB:  J9QDX2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupJ9QDX2
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 9
MoleculeChains Sequence LengthOrganismDetailsImage
Tail tape measureWA [auth w],
XA [auth x],
YA [auth y]
1,424Clostridioides phage phiCD508Mutation(s): 0
Gene Names: phiMMP02_gp17
UniProt
Find proteins for J9QEB7 (Clostridium phage phiMMP02)
Explore J9QEB7
Go to UniProtKB:  J9QEB7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupJ9QEB7
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.96 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Biotechnology and Biological Sciences Research Council (BBSRC)United KingdomBB/P02002X/1

Revision History  (Full details and data files)

  • Version 1.0: 2025-04-09
    Type: Initial release
