9L7R | pdb_00009l7r

Crystal structure of P450cam-F87R mutant complex with (-)-ambroxide

• PDB DOI: https://doi.org/10.2210/pdb9L7R/pdb

• Classification: OXIDOREDUCTASE
• Organism(s): Priestia megaterium
• Expression System: Escherichia coli BL21(DE3)
• Mutation(s): Yes


• Deposited: 2024-12-27 Released: 2026-01-07
• Deposition Author(s): Dong, S., Feng, Y.G.
• Funding Organization(s): National Natural Science Foundation of China (NSFC)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.04 Å
• R-Value Free:
  0.256 (Depositor), 0.258 (DCC)
• R-Value Work:
  0.206 (Depositor), 0.212 (DCC)
• R-Value Observed:
  0.208 (Depositor)

Starting Model: experimental

Literature

Crystal structure of P450cam-F87R mutant

Dong, S., Feng, Y.G.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors and generated by PISA (software)

Biological Assembly Evidence: gel filtration

Biological Assembly 2

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 2 assigned by authors and generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 106.57 kDa
• Atom Count: 6,688
• Modeled Residue Count: 800
• Deposited Residue Count: 934
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

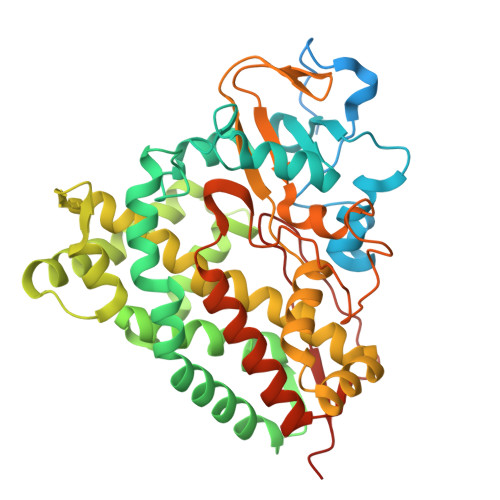

Camphor 5-monooxygenase	A, B	467	Priestia megaterium	Mutation(s): 1  Gene Names: camC, cyp101 EC: 1.14.15.1
UniProt
Find proteins for P00183 (Pseudomonas putida) Explore P00183  Go to UniProtKB:  P00183

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
HEM (Subject of Investigation/LOI)	C [auth A], E [auth B]	PROTOPORPHYRIN IX CONTAINING FE C34 H32 Fe N4 O4 KABFMIBPWCXCRK-RGGAHWMASA-L
A1EI5 (Subject of Investigation/LOI)	D [auth A], F [auth B]	(3~{a}~{R},5~{a}~{S},9~{a}~{S},9~{b}~{R})-3~{a},6,6,9~{a}-tetramethyl-2,4,5,5~{a},7,8,9,9~{b}-octahydro-1~{H}-benzo[e][1]benzofuran C16 H28 O YPZUZOLGGMJZJO-LQKXBSAESA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.04 Å
• R-Value Free:  0.256 (Depositor), 0.258 (DCC)
• R-Value Work:  0.206 (Depositor), 0.212 (DCC)
• R-Value Observed: 0.208 (Depositor)

Space Group: P 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 36.487	α = 79.24
b = 62.073	β = 80.85
c = 96.128	γ = 75.42

Software Package:

Software Name	Purpose
PHENIX	refinement
Aimless	data scaling
XDS	data reduction
PHASER	phasing

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2026-01-07
Deposition Author(s): Dong, S., Feng, Y.G.

---

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	32071266
National Natural Science Foundation of China (NSFC)	China	32171203

Revision History

• Version 1.0: 2026-01-07
  Type: Initial release
