9MCK | pdb_00009mck

Crystal structure of SARS-Cov-2 main protease M49I mutant in complex with Leritrelvir

PDB DOI: https://doi.org/10.2210/pdb9MCK/pdb

Classification: VIRAL PROTEIN
Organism(s): Severe acute respiratory syndrome coronavirus 2
Expression System: Escherichia coli BL21(DE3)
Mutation(s): Yes

Deposited: 2025-03-17 Released: 2026-09-23
Deposition Author(s): Zhou, X.L., Li, J.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.82 Å
R-Value Free:
0.228 (Depositor), 0.229 (DCC)
R-Value Work:
0.190 (Depositor), 0.191 (DCC)
R-Value Observed:
0.191 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9MCK

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

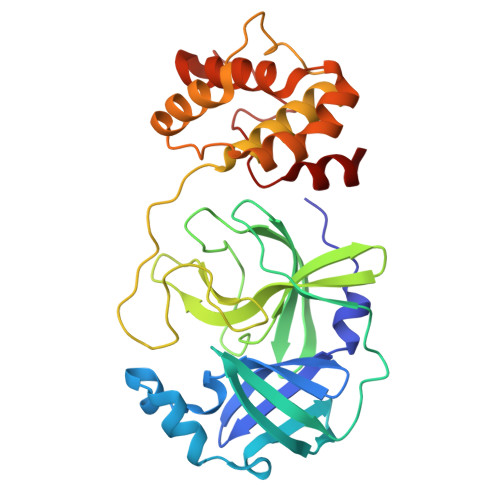

Crystal structure of SARS-Cov-2 main protease M49I mutant in complex with Leritrelvir

Zhou, X.L., Li, J.

To be published.

Macromolecule Content

Total Structure Weight: 67.37 kDa
Atom Count: 4,923
Modeled Residue Count: 594
Deposited Residue Count: 596
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
3C-like proteinase nsp5	A, B	298	Severe acute respiratory syndrome coronavirus 2	Mutation(s): 1 Gene Names: rep, 1a-1b EC: 3.4.22.69
UniProt
Find proteins for P0DTD1 (Severe acute respiratory syndrome coronavirus 2) Explore P0DTD1 Go to UniProtKB: P0DTD1
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P0DTD1
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
7ON (Subject of Investigation/LOI) Query on 7ON Download:Ideal Coordinates CCD File SDF format, chain C [auth A] SDF format, chain D [auth B] MOL2 format, chain C [auth A] MOL2 format, chain D [auth B] mmCIF format, chain C [auth A] mmCIF format, chain D [auth B]	C [auth A], D [auth B]	Leritrelvir bound form C₃₁ H₄₆ F₃ N₅ O₆ FMXUVDFVVNRAMG-IFCRGVKQSA-N		Interactions Focus chain C [auth A] Focus chain D [auth B] Interactions & Density Focus chain C [auth A] Focus chain D [auth B]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.82 Å
R-Value Free: 0.228 (Depositor), 0.229 (DCC)
R-Value Work: 0.190 (Depositor), 0.191 (DCC)
R-Value Observed: 0.191 (Depositor)

Space Group: P 1 2₁ 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 54.357	α = 90
b = 97.374	β = 108.119
c = 58.284	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
PHENIX	refinement
XDS	data reduction
XDS	data scaling
PHENIX	phasing

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-09-23

Deposition Author(s):

Funding Organization	Location	Grant Number
Not funded		--

Revision History (Full details and data files)

Version 1.0: 2026-09-23
Type: Initial release
