9S2Q | pdb_00009s2q

NH-triazol-modified insulin

PDB DOI: https://doi.org/10.2210/pdb9S2Q/pdb

Classification: HORMONE
Organism(s): Homo sapiens
Expression System: Escherichia coli 'BL21-Gold(DE3)pLysS AG
Mutation(s): No

Deposited: 2025-07-22 Released: 2026-08-12
Deposition Author(s): Hadzi, S., Gazvoda, M.
Funding Organization(s): Slovenian Research Agency

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.37 Å
R-Value Free:
0.215 (Depositor), 0.227 (DCC)
R-Value Work:
0.181 (Depositor), 0.192 (DCC)
R-Value Observed:
0.183 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9S2Q

This is version 1.0 of the entry. See complete history.

Literature

Protein NH-triazole functionalization for improvement of protein properties results in thermally stable insulin with preserved biological activity

Hadzi, S., Gazvoda, M.

To be published.

Macromolecule Content

Total Structure Weight: 6.1 kDa
Atom Count: 486
Modeled Residue Count: 51
Deposited Residue Count: 51
Unique protein chains: 2

Macromolecules

Find similar proteins by: Sequence | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

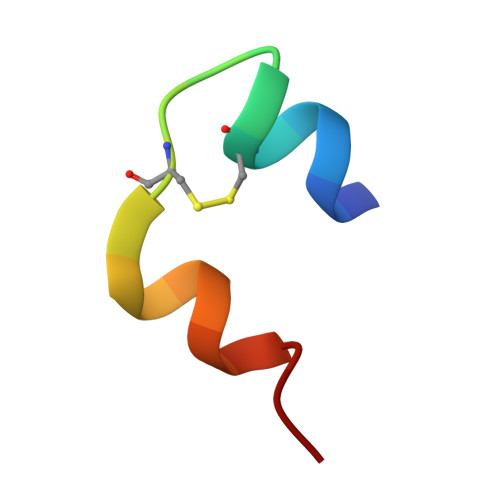

Insulin A chain	A	21	Homo sapiens	Mutation(s): 0 Gene Names: INS
UniProt & NIH Common Fund Data Resources
Find proteins for P01308 (Homo sapiens) Explore P01308 Go to UniProtKB: P01308
PHAROS: P01308 GTEx: ENSG00000254647
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P01308
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

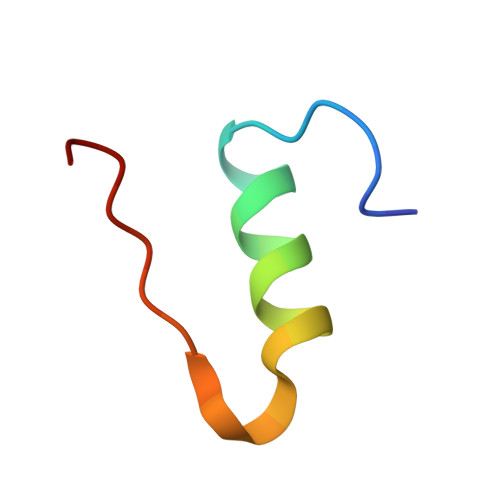

Insulin B chain	B	30	Homo sapiens	Mutation(s): 0 Gene Names: INS
UniProt
Find proteins for P01318 (Ovis aries) Explore P01318 Go to UniProtKB: P01318
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P01318
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
A1JLG( Subject of Investigation/LOI) Query on A1JLG Download:Ideal Coordinates CCD File SDF format, chain C [auth A] SDF format, chain D [auth B] MOL2 format, chain C [auth A] MOL2 format, chain D [auth B] mmCIF format, chain C [auth A] mmCIF format, chain D [auth B]	C [auth A], D [auth B]	3-(1~{H}-1,2,3-triazol-4-ylmethoxy)propanal C₆ H₉ N₃ O₂ CVXQMMNMBYNTFH-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Focus chain D [auth B] Interactions & Density Focus chain C [auth A] Focus chain D [auth B]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.37 Å
R-Value Free: 0.215 (Depositor), 0.227 (DCC)
R-Value Work: 0.181 (Depositor), 0.192 (DCC)
R-Value Observed: 0.183 (Depositor)

Space Group: I 2₁ 3

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 77.76	α = 90
b = 77.76	β = 90
c = 77.76	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
XDS	data reduction
autoPROC	data scaling
PHASER	phasing

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-08-12

Deposition Author(s):

Funding Organization	Location	Grant Number
Slovenian Research Agency	Slovenia	P1-0201
Slovenian Research Agency	Slovenia	J1-50026
Slovenian Research Agency	Slovenia	--

Revision History (Full details and data files)

Version 1.0: 2026-08-12
Type: Initial release
