9WTZ | pdb_00009wtz

Fusion protein of Helicoverpa armigera nucleopolyhedrovirus in the uncleaved prefusion state

PDB DOI: https://doi.org/10.2210/pdb9WTZ/pdb
EM Map EMD-66228: EMDB EMDataResource

Classification: VIRAL PROTEIN
Organism(s): Helicoverpa armigera nucleopolyhedrovirus
Expression System: Drosophila melanogaster
Mutation(s): No

Deposited: 2025-09-17 Released: 2026-09-23
Deposition Author(s): Chong, T., Rao, G., Fu, Y., Cao, S.
Funding Organization(s): Ministry of Science and Technology (MoST, China)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.80 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9WTZ

This is version 1.0 of the entry. See complete history.

Literature

Fusion protein of Helicoverpa armigera nucleopolyhedrovirus in the uncleaved prefusion state

Chong, T., Rao, G., Fu, Y., Cao, S.

To be published.

Macromolecule Content

Total Structure Weight: 220.1 kDa
Atom Count: 12,441
Modeled Residue Count: 1,509
Deposited Residue Count: 1,893
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

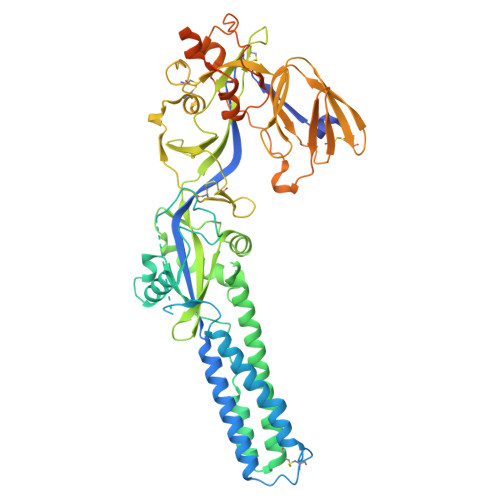

Fusion protein	A, B, C	631	Helicoverpa armigera nucleopolyhedrovirus	Mutation(s): 0 Gene Names: ORF-133, ORF-134
UniProt
Find proteins for A0A0E3JAQ5 (Helicoverpa armigera nucleopolyhedrovirus) Explore A0A0E3JAQ5 Go to UniProtKB: A0A0E3JAQ5
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A0E3JAQ5
Glycosylation
Glycosylation Sites: 4	Glycosylation Focus chain A Focus chain B Focus chain C
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
NAG (Subject of Investigation/LOI) Query on NAG Download:Ideal Coordinates CCD File SDF format, chain D [auth A] SDF format, chain G [auth A] SDF format, chain K [auth B] SDF format, chain M [auth C] SDF format, chain O [auth C] SDF format, chain N [auth C] SDF format, chain L [auth C] SDF format, chain J [auth B] SDF format, chain I [auth B] SDF format, chain H [auth B] SDF format, chain F [auth A] SDF format, chain E [auth A] MOL2 format, chain D [auth A] MOL2 format, chain G [auth A] MOL2 format, chain K [auth B] MOL2 format, chain M [auth C] MOL2 format, chain O [auth C] MOL2 format, chain N [auth C] MOL2 format, chain L [auth C] MOL2 format, chain J [auth B] MOL2 format, chain I [auth B] MOL2 format, chain H [auth B] MOL2 format, chain F [auth A] MOL2 format, chain E [auth A] mmCIF format, chain D [auth A] mmCIF format, chain G [auth A] mmCIF format, chain K [auth B] mmCIF format, chain M [auth C] mmCIF format, chain O [auth C] mmCIF format, chain N [auth C] mmCIF format, chain L [auth C] mmCIF format, chain J [auth B] mmCIF format, chain I [auth B] mmCIF format, chain H [auth B] mmCIF format, chain F [auth A] mmCIF format, chain E [auth A]	D [auth A] E [auth A] F [auth A] G [auth A] H [auth B] D [auth A], E [auth A], F [auth A], G [auth A], H [auth B], I [auth B], J [auth B], K [auth B], L [auth C], M [auth C], N [auth C], O [auth C]	2-acetamido-2-deoxy-beta-D-glucopyranose C₈ H₁₅ N O₆ OVRNDRQMDRJTHS-FMDGEEDCSA-N		Interactions Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth B] Focus chain I [auth B] Focus chain J [auth B] Focus chain K [auth B] Focus chain L [auth C] Focus chain M [auth C] Focus chain N [auth C] Focus chain O [auth C] Interactions & Density Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth B] Focus chain I [auth B] Focus chain J [auth B] Focus chain K [auth B] Focus chain L [auth C] Focus chain M [auth C] Focus chain N [auth C] Focus chain O [auth C]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 2.80 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.19.2_4158
RECONSTRUCTION	cryoSPARC

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-09-23

Deposition Author(s):

Funding Organization	Location	Grant Number
Ministry of Science and Technology (MoST, China)	China	2022YFC2303300

Revision History (Full details and data files)

Version 1.0: 2026-09-23
Type: Initial release
